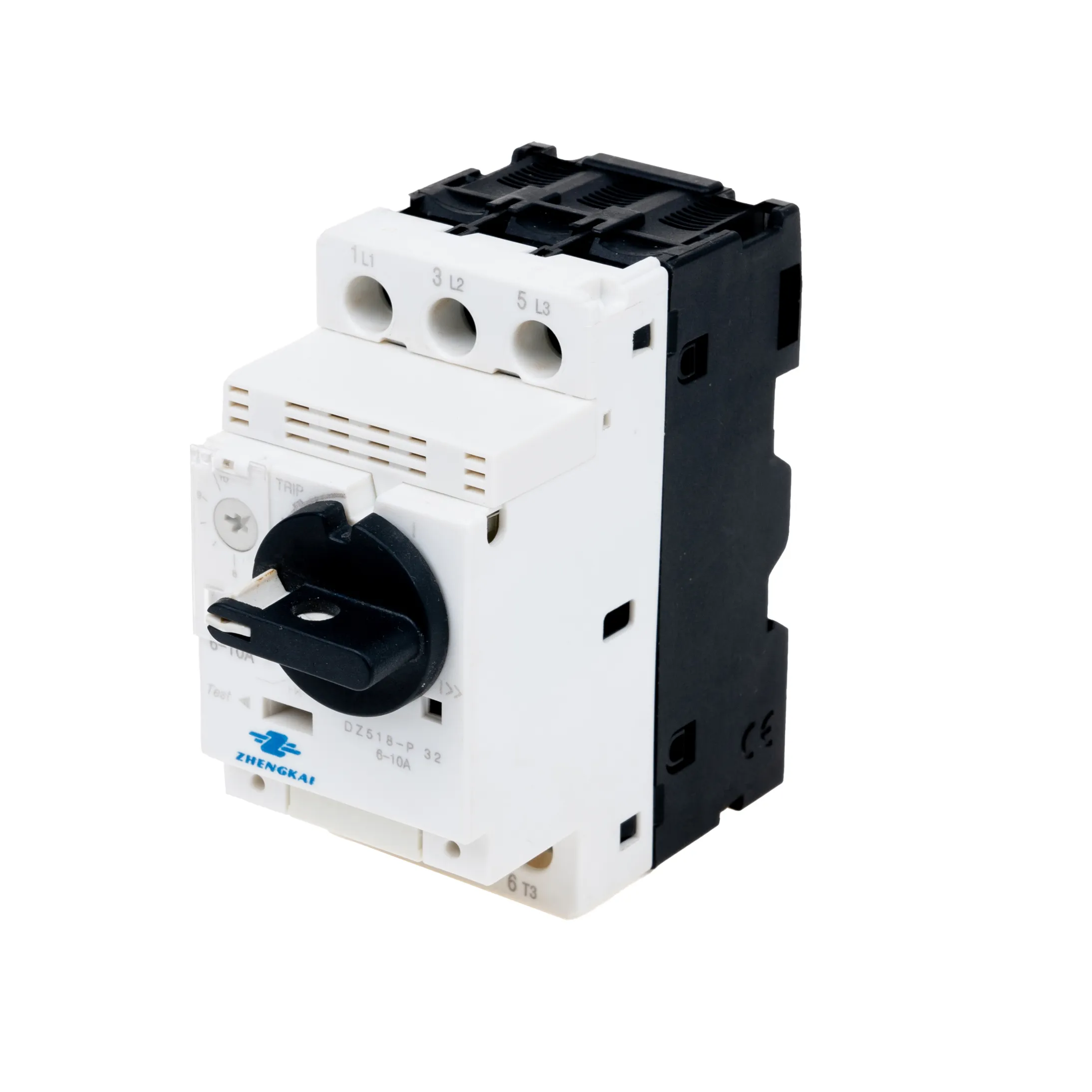

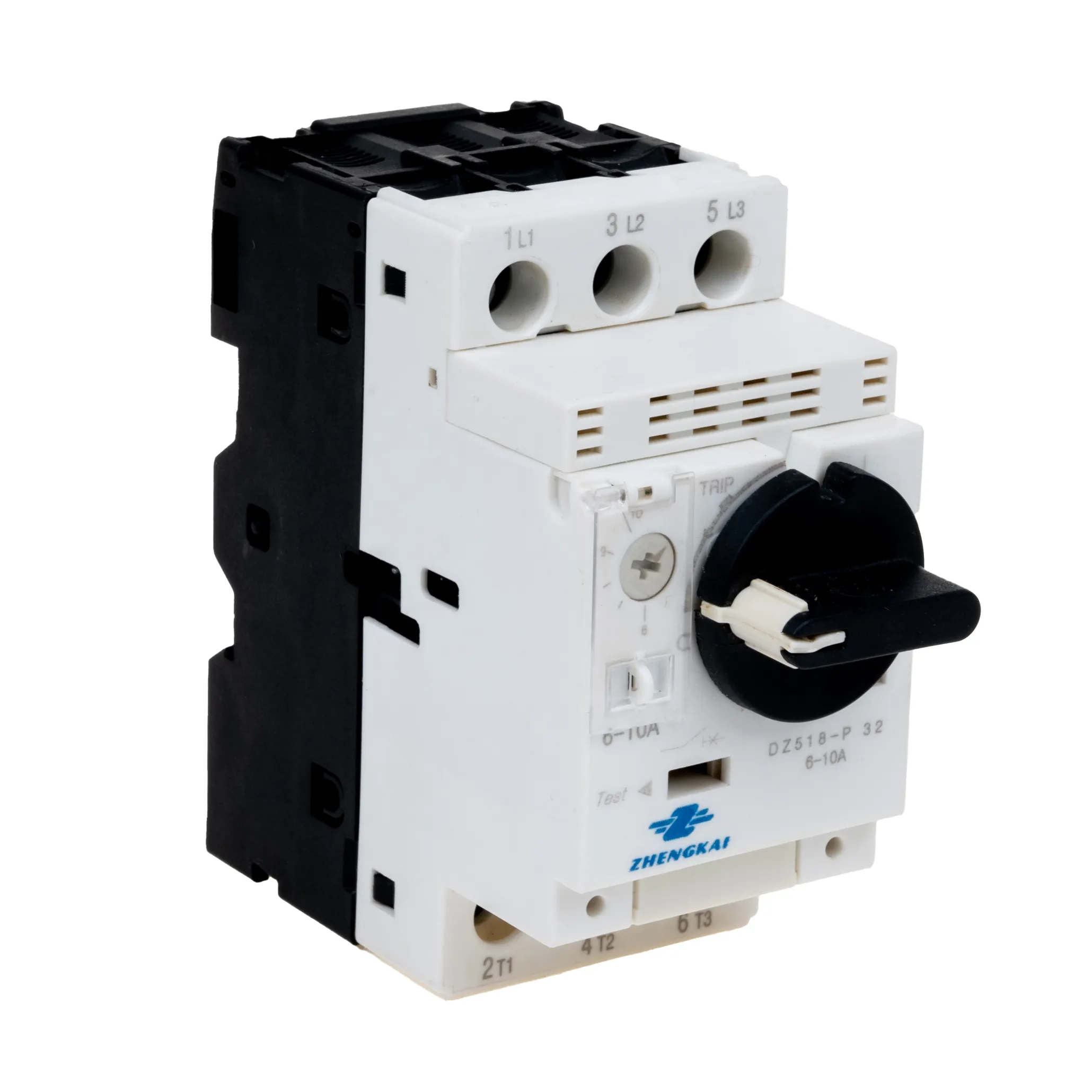

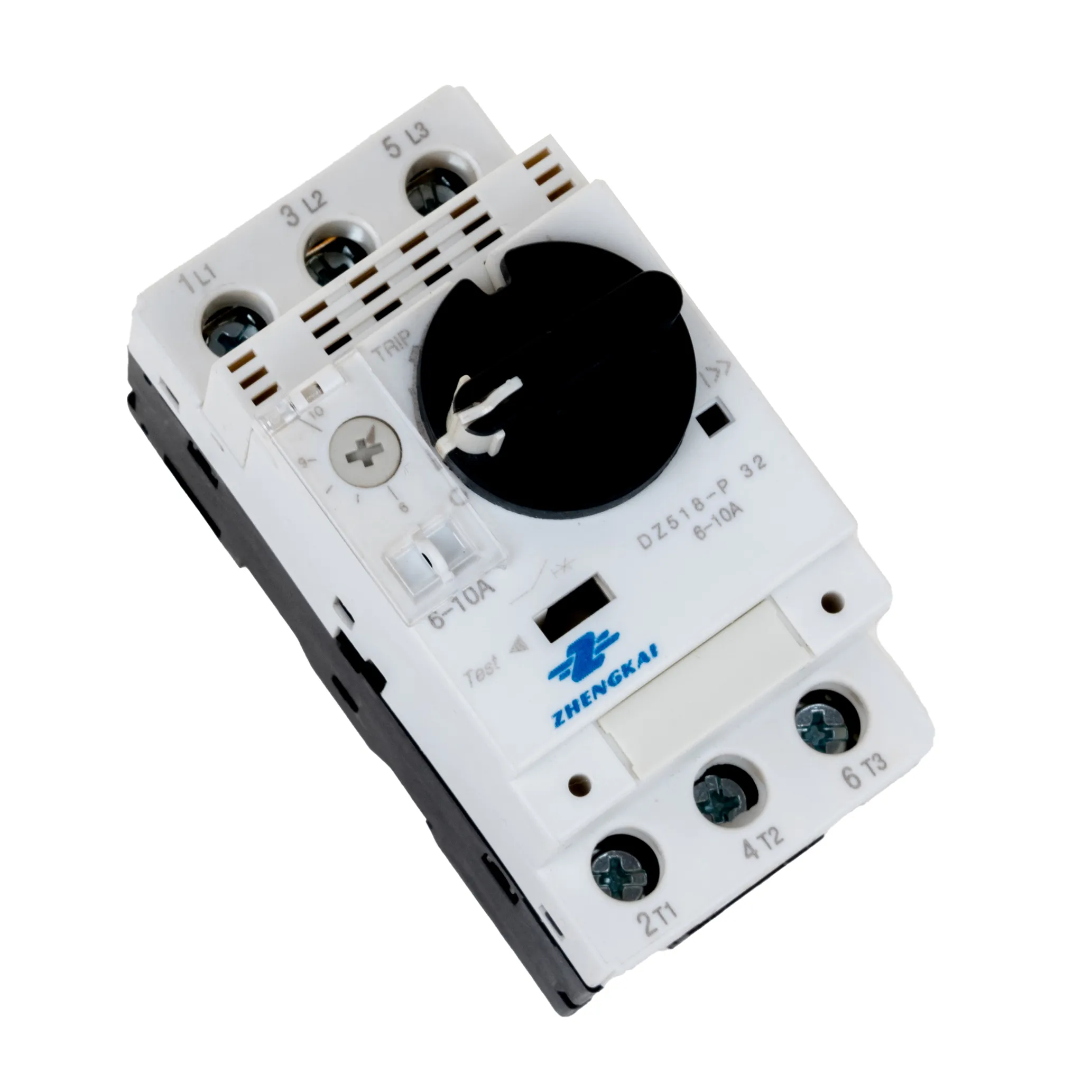

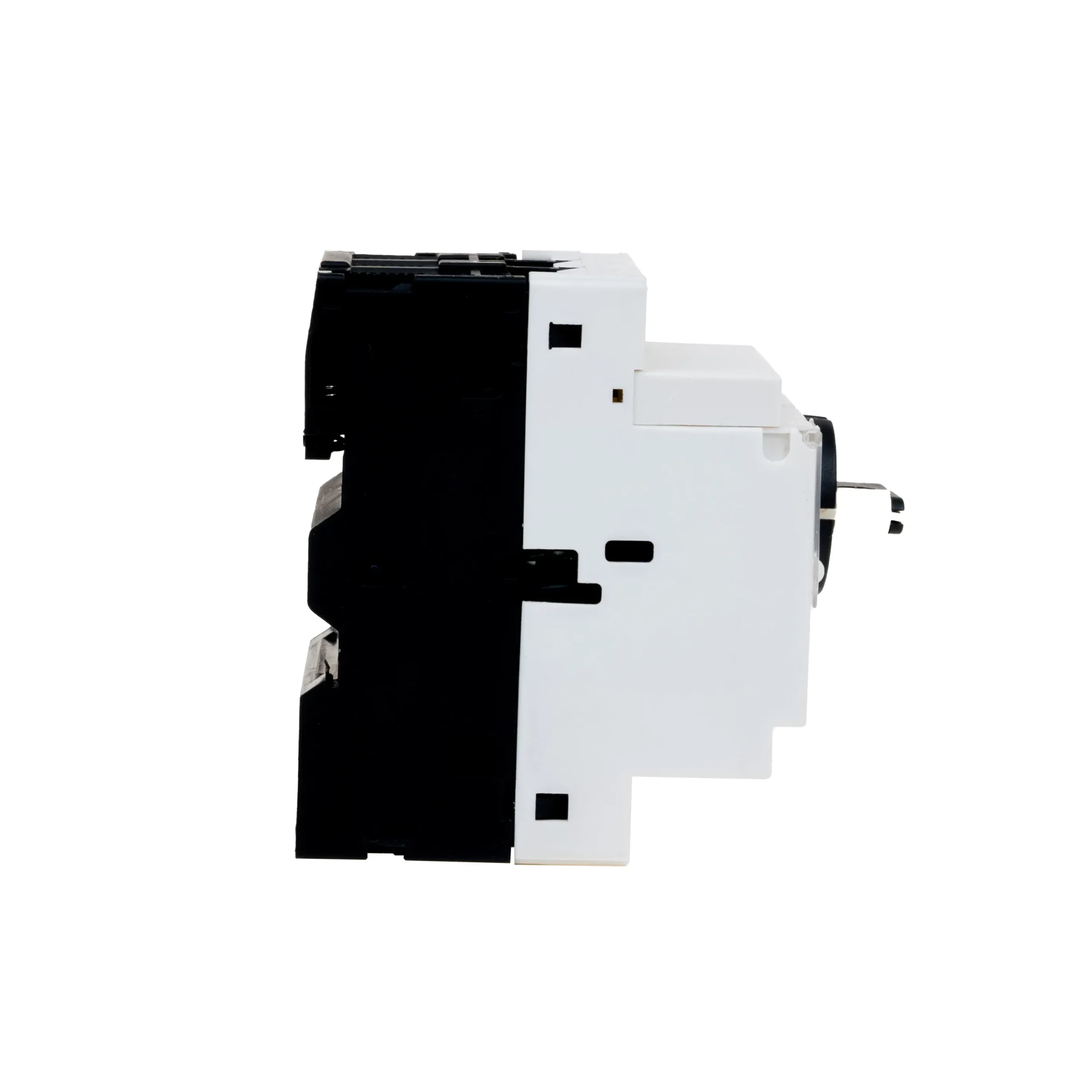

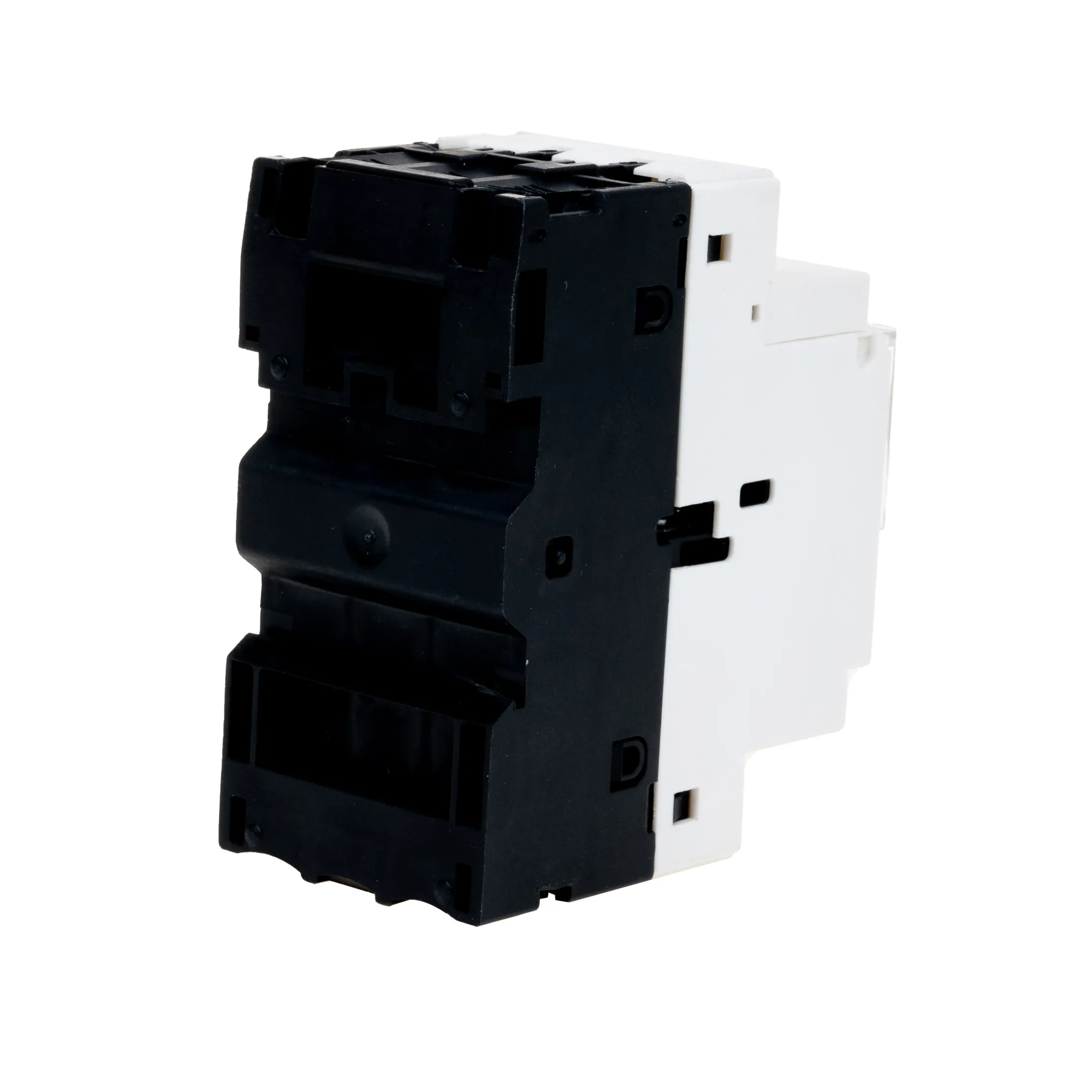

Gv2/Gv3-P Series Motor Circuit Breaker - High Quality Protection

Discover the Gv2/Gv3-P Series Motor Circuit Breaker for reliable motor protection. Ensure safety and performance in your electrical systems with this high-quality solution. DZ518(GV2-M、ME、ZM is the electric motor belt thermomaanetism protection circuit breaker which the buttoncontrols;DZ518(GV2-RS GV2-P)is the electric motor belt thermomagentism protection circuitbreaker which the change-over switch controls; DZ518(GV2-LS,LE) is the electric motor beltmagnetism protection circuit breaker which the change-over switch controls (does not bringhot protection).

Share products to

Product Details

Specification	Rated current In(A)	The adjusting rage of commuting current	The cutting capacity for rated limit short circuit lcu,the cutting capacity for rated work short circuit lcs										The distance of arcs(mm)
			230/240V		400/415V		440V		500V		690V
			Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)
GV2ME01C	0.16	0.10-0.16	100	100	100	100	100	100	100	100	100	100	40
GV2ME02C	0.25	0.16-0.25	100	100	100	100	100	100	100	100	100	100	40
GV2ME03C	0.4	0.25-0.40	100	100	100	100	100	100	100	100	100	100	40
GV2ME04C	0.63	0.40-0.63	100	100	100	100	100	100	100	100	100	100	40
GV2ME05C	1	0.63-1.00	100	100	100	100	100	100	100	100	100	100	40
GV2ME06C	1.6	1.00-1.60	100	100	100	100	100	100	100	100	100	100	40
GV2ME07C	2.5	1.60-2.50	100	100	100	100	100	100	100	100	3	2.25	40
GV2ME08C	4	2.50-4.00	100	100	100	100	100	100	100	100	3	2.25	40
GV2ME10C	6.3	4.00-6.30	100	100	100	100	50	50	50	50	3	2.25	40
GV2ME14C	10	6.00-10.00	100	100	100	100	15	15	10	10	3	2.25	40
GV2ME18C	14	9.00-14.00	100	100	15	7.5	8	4	6	4.5	3	2.25	40
GV2ME20C	18	13.00-18.00	100	100	15	7.5	8	4	6	4.5	3	2.25	40
GV2ME21C	23	17.00-23.00	50	50	15	6	6	3	4	3	3	2.25	40
GV2ME22C	25	20.00-25.00	50	50	15	6	6	3	4	3	3	2.25	40
GV2ME32C	32	24.00-32.00	50	50	10	5	6	3	4	3	3	2.25	40

The action characteristic of breaker(GV2 Motor circuit breaker) when every phase load is in balance
The multiple of rated current	Starting state	Stipulated time	Due result	The temperature of ambient air
1.05	Cold state	t≤2h	No disjounting	+40℃±2℃
1.2	Hot state (rises up to the stipulated currentafter following the test of No 1)	t< 2h	Disjounting
1.5	One-time commuting curren Starts after the bot balance	t< 2min	Disjounting
7.2	Cold state	2<t≤10s	Disjounting

The action characteristic of breaker(GV2 Motor circuit breaker) when every phase load is in balance
The multiple of rated current		Starting state	Stipulated time	Due result	The temperature ofambient air
Any two phases	The third phases
1	0.9	Cold state	t≤2h	No disjounting	+40℃±2℃
1.15	0	Hot state (rises up to the stipulatedcurrent after following the test of No 1)	t< 2h	Disjounting

Other parameters
Ratedinsulation voltage Ui(V):690;
Rated work voltage Ue(V):230/240、400/415、440、550、690;
Rated frequency Hz:50/60;
The grade rated current ofshell Inm(A):32;
The bearable voltage forrated shock Uimp(V):8000。

Here is a revised version of the product details for the Gv2/Gv3-P Series High Quality Motor Circuit Breaker, ensuring that relevant keywords are used at least five times and pronouns are replaced with specific terms: The Gv2/Gv3-P Series High Quality Motor Circuit Breaker is designed to provide superior motor protection in both industrial and commercial applications. The Gv2/Gv3-P Series Motor Circuit Breaker offers thermal-magnetic protection, ensuring that motors are safeguarded from overloads and short circuits. With the Gv2/Gv3-P Series Motor Circuit Breaker, users can rely on consistent performance and enhanced safety for their electrical systems.

One of the key features of the Gv2/Gv3-P Series Motor Circuit Breaker is its adjustable trip settings, which allow users to customize the protection according to the specific requirements of their motors. This makes the Gv2/Gv3-P Series Motor Circuit Breaker versatile and suitable for a wide range of motor sizes and power ratings. Additionally, the compact design of the Gv2/Gv3-P Series Motor Circuit Breaker allows for easy installation in tight spaces without compromising on protection.

The Gv2/Gv3-P Series Motor Circuit Breaker is available in different models to accommodate various motor power ratings. The Gv2 model is ideal for lower power motors, while the Gv3-P model is designed for higher power motors, ensuring that the Gv2/Gv3-P Series Motor Circuit Breaker can be used in diverse applications. Whether protecting single-phase or three-phase motors, the Gv2/Gv3-P Series Motor Circuit Breaker delivers reliable performance.

Installation of the Gv2/Gv3-P Series Motor Circuit Breaker is straightforward, requiring no additional components or complex wiring. The Gv2/Gv3-P Series Motor Circuit Breaker integrates seamlessly into existing motor control systems, providing immediate protection against electrical faults. By choosing the Gv2/Gv3-P Series Motor Circuit Breaker, users benefit from reduced downtime and extended motor lifespan.

The Gv2/Gv3-P Series High Quality Motor Circuit Breaker is an essential component for any system requiring dependable motor protection. With its advanced features and robust design, the Gv2/Gv3-P Series Motor Circuit Breaker ensures that motors operate safely and efficiently, even in demanding environments.

Questions & Answers

1.What are the key features of the Gv2/Gv3-P Series Motor Circuit Breaker?

The Gv2/Gv3-P Series offers thermal-magnetic protection, adjustable trip settings, and compact design, ensuring reliable motor protection in various industrial applications.

2.How do I choose between the Gv2 and Gv3-P models for my motor?

The Gv2 is suitable for motors with lower power ratings, while the Gv3-P is designed for higher power motors. Always refer to your motor’s specifications to select the right model.

3.Can the Gv2/Gv3-P Series Motor Circuit Breaker be used for both single-phase and three-phase motors?

Yes, the Gv2/Gv3-P Series can be used for both single-phase and three-phase motors, providing flexibility in different electrical systems.

4.What is the maximum current rating for the Gv2/Gv3-P Series Motor Circuit Breaker?

The maximum current rating varies by model, with the Gv2 typically supporting up to 32A and the Gv3-P supporting higher ratings. Check product specifications for exact details.

5.Does the Gv2/Gv3-P Series Motor Circuit Breaker require additional components for installation?

No, the Gv2/Gv3-P Series is designed for easy installation without additional components, making it a convenient choice for motor protection in most systems.
