GV2-M

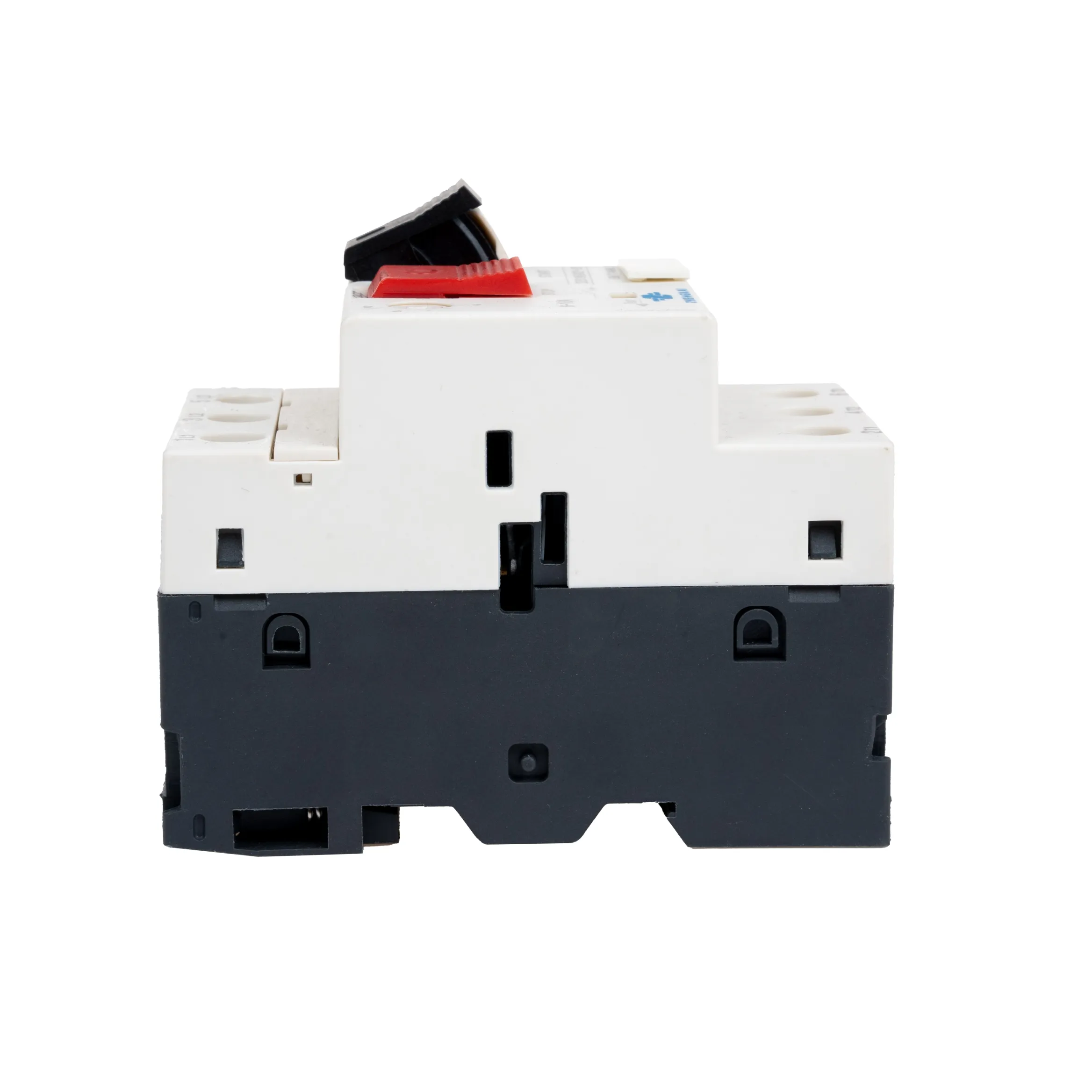

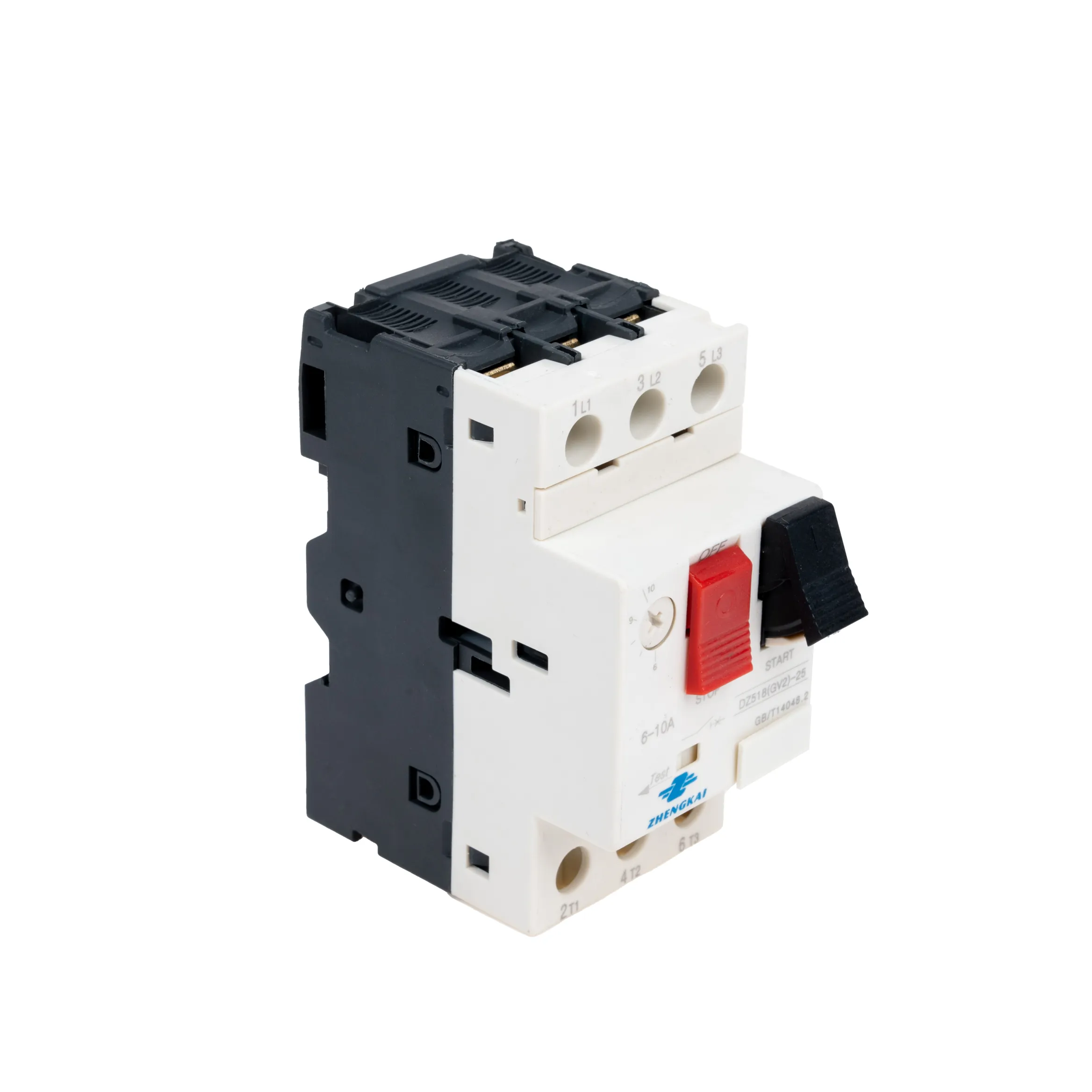

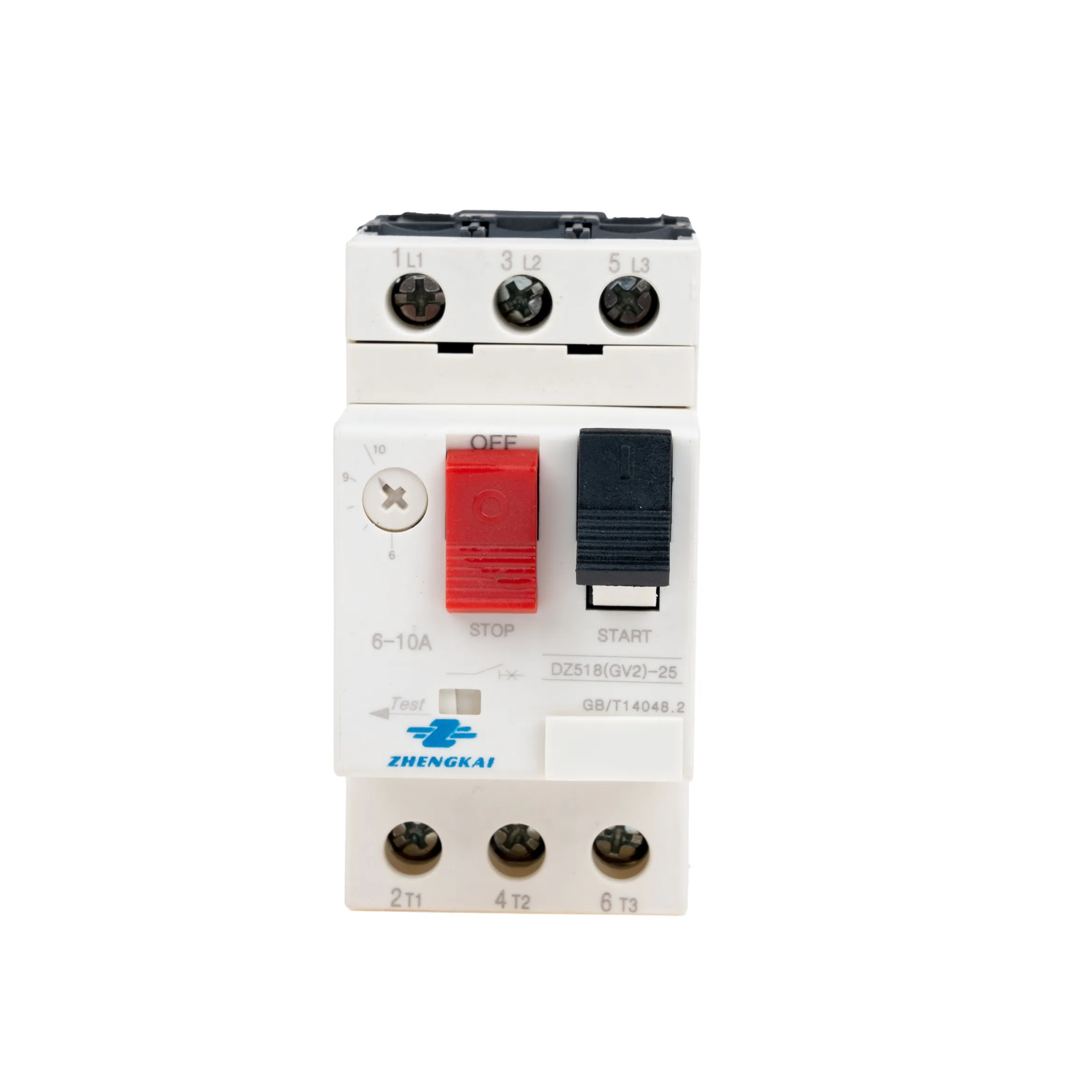

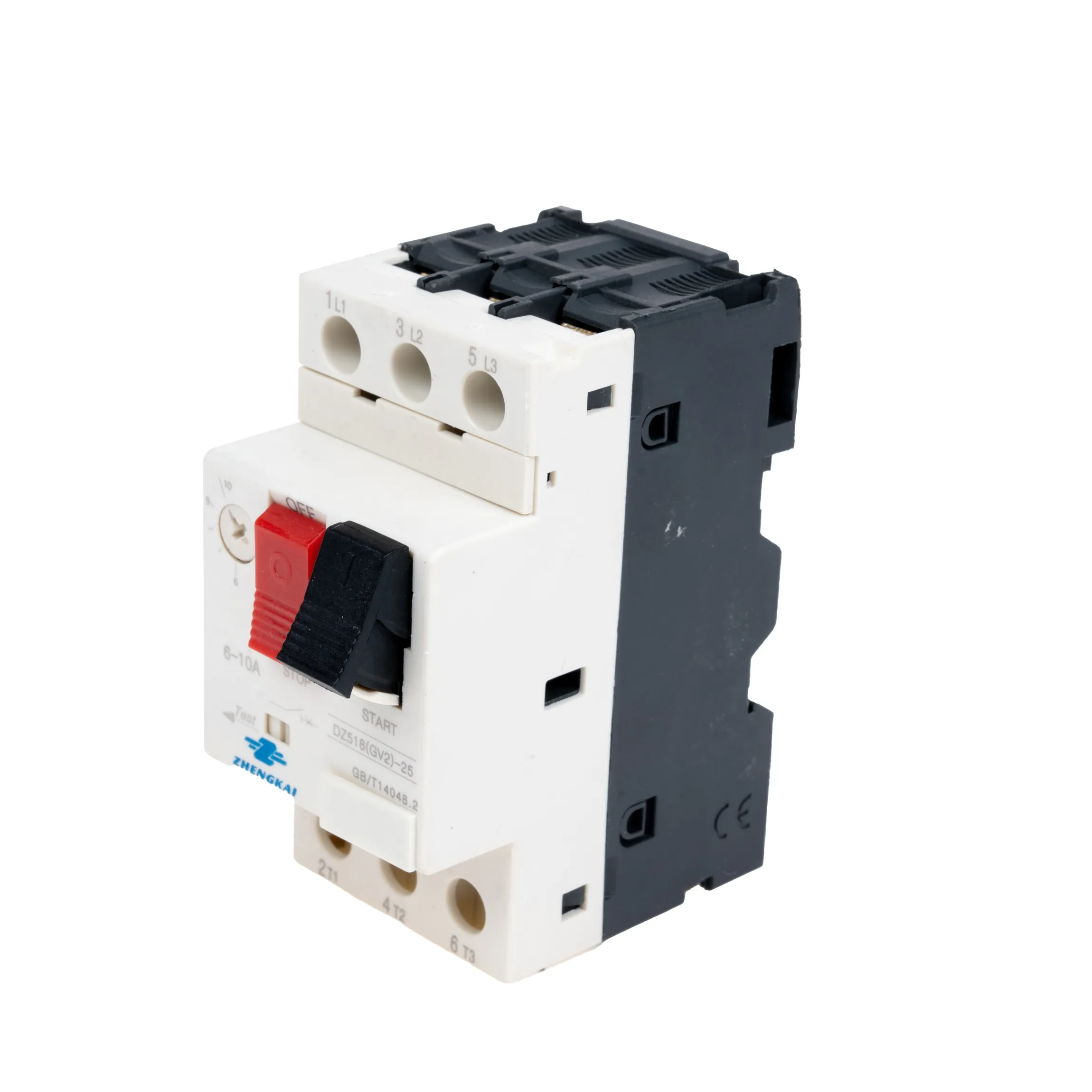

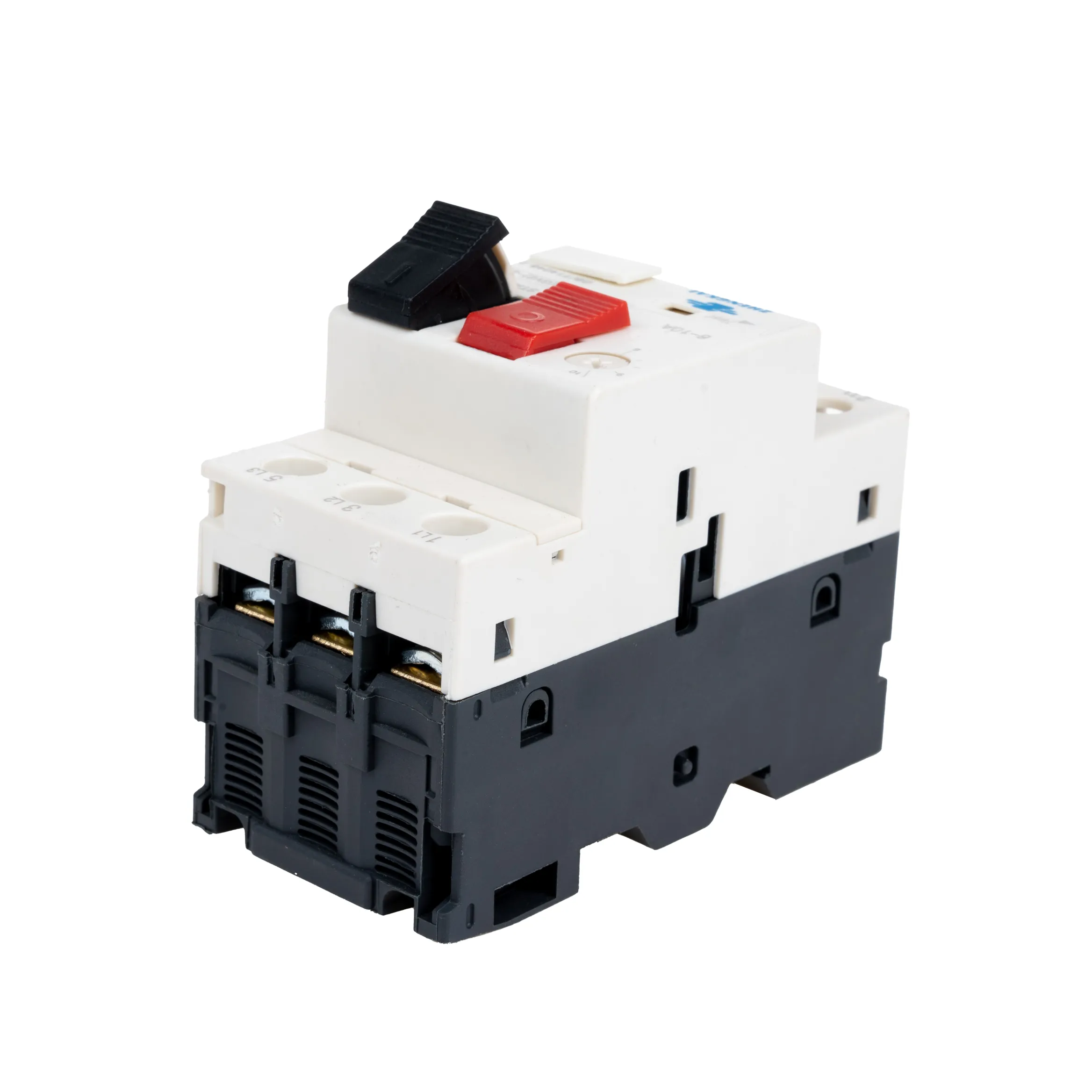

GV2-M Motor Circuit Breaker - Reliable Motor Protection

Discover the GV2-M Motor Circuit Breaker for optimal motor protection and performance. Ensure safety and reliability in your electrical systems. DZ518(GV2,GV3)the series electric motor protection circuit breaker, uses the modulardesign, the contour is artistic, the volume is small, breaks protects, inside sets Hot Relay, thefunction is strong, the versatility is good.

Share products to

Product Details

Specification	Rated current In(A)	The adjusting rage of commuting current	The cutting capacity for rated limit short circuit lcu,the cutting capacity for rated work short circuit lcs										The distance of arcs(mm)
			230/240V		400/415V		440V		500V		690V
			Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)
GV2M01C	0.16	0.10-0.16	100	100	100	100	100	100	100	100	100	100	40
GV2M02C	0.25	0.16-0.25	100	100	100	100	100	100	100	100	100	100	40
GV2M03C	0.4	0.25-0.40	100	100	100	100	100	100	100	100	100	100	40
GV2M04C	0.63	0.40-0.63	100	100	100	100	100	100	100	100	100	100	40
GV2M05C	1	0.63-1.00	100	100	100	100	100	100	100	100	100	100	40
GV2M06C	1.6	1.00-1.60	100	100	100	100	100	100	100	100	100	100	40
GV2M07C	2.5	1.60-2.50	100	100	100	100	100	100	100	100	3	2.25	40
GV2M08C	4	2.50-4.00	100	100	100	100	100	100	100	100	3	2.25	40
GV2M10C	6.3	4.00-6.30	100	100	100	100	50	50	50	50	3	2.25	40
GV2M14C	10	6.00-10.00	100	100	100	100	15	15	10	10	3	2.25	40
GV2M18C	14	9.00-14.00	100	100	15	7.5	8	4	6	4.5	3	2.25	40
GV2M20C	18	13.00-18.00	100	100	15	7.5	8	4	6	4.5	3	2.25	40
GV2M21C	23	17.00-23.00	50	50	15	6	6	3	4	3	3	2.25	40
GV2M22C	25	20.00-25.00	50	50	15	6	6	3	4	3	3	2.25	40
GV2M32C	32	24.00-32.00	50	50	10	5	6	3	4	3	3	2.25	40

The action characteristic of breaker(GV2 Motor circuit breaker) when every phase load is in balance
The multiple of rated current	Starting state	Stipulated time	Due result	The temperature of ambient air
1.05	Cold state	t≤2h	No disjounting	+40℃±2℃
1.2	Hot state (rises up to the stipulated currentafter following the test of No 1)	t< 2h	Disjounting
1.5	One-time commuting curren Starts after the bot balance	t< 2min	Disjounting
7.2	Cold state	2<t≤10s	Disjounting

The action characteristic of breaker(GV2 Motor circuit breaker) when every phase load is in balance
The multiple of rated current		Starting state	Stipulated time	Due result	The temperature ofambient air
Any two phases	The third phases
1	0.9	Cold state	t≤2h	No disjounting	+40℃±2℃
1.15	0	Hot state (rises up to the stipulatedcurrent after following the test of No 1)	t< 2h	Disjounting

Other parameters
Ratedinsulation voltage Ui(V):690;
Rated work voltage Ue(V):230/240、400/415、440、550、690;
Rated frequency Hz:50/60;
The grade rated current ofshell Inm(A):32;
The bearable voltage forrated shock Uimp(V):8000。

The GV2-M Motor Circuit Breaker is an essential device for protecting motors from electrical faults. This motor protection circuit breaker offers reliable defense against overloads, short circuits, and phase failures. With the GV2-M Motor Circuit Breaker, you can ensure that your motor operates safely and efficiently, minimizing downtime and preventing costly repairs. The GV2-M Motor Circuit Breaker is designed to handle various motor sizes, making it versatile for different applications.

The GV2-M Motor Circuit Breaker features adjustable settings to match the specific requirements of your motor. This motor protection circuit breaker is engineered to withstand high starting currents while maintaining protection during normal operation. By using the GV2-M Motor Circuit Breaker, you can safeguard your equipment from electrical hazards, ensuring long-term performance and reliability. The GV2-M Motor Circuit Breaker is a key component in maintaining the safety of industrial motors.

In addition to its protective capabilities, the GV2-M Motor Circuit Breaker is easy to install and configure. This motor protection circuit breaker integrates seamlessly into your existing electrical system, providing immediate protection without complicated setup procedures. The GV2-M Motor Circuit Breaker also includes a manual reset feature, allowing you to quickly restore operation after a fault has been cleared. Overall, the GV2-M Motor Circuit Breaker is an indispensable tool for motor protection in any industrial environment.

By choosing the GV2-M Motor Circuit Breaker, you are investing in a high-quality solution that prevents damage to your motors and reduces maintenance costs. This motor protection circuit breaker ensures that your motors run smoothly and are protected from common electrical issues like overloads and short circuits. The GV2-M Motor Circuit Breaker is a trusted choice for professionals seeking reliable motor protection in demanding applications.

Questions & Answers

1.What is the primary function of the GV2-M Motor Circuit Breaker?

The GV2-M Motor Circuit Breaker provides thermal-magnetic protection for motors, safeguarding them from overloads, short circuits, and phase failures.

2.What motor sizes can the GV2-M Motor Circuit Breaker handle?

The GV2-M Motor Circuit Breaker is versatile and can handle a wide range of motor sizes, depending on the specific model’s current rating, making it suitable for various applications.

3.How does the GV2-M Motor Circuit Breaker protect against short circuits?

The GV2-M Motor Circuit Breaker uses magnetic tripping technology to detect and interrupt short circuits, providing immediate protection by tripping at approximately 13 times the maximum thermal protection setting.

4.Can the GV2-M Motor Circuit Breaker be used as a manual motor starter?

Yes, the GV2-M Motor Circuit Breaker can also function as a manual motor starter, allowing users to manually control motor operation with push buttons for start and stop.

5.What are the installation options for the GV2-M Motor Circuit Breaker?

The GV2-M Motor Circuit Breaker can be installed on a DIN rail or mounted using screws, offering flexibility in installation depending on your electrical system configuration.
