GV2-ZM

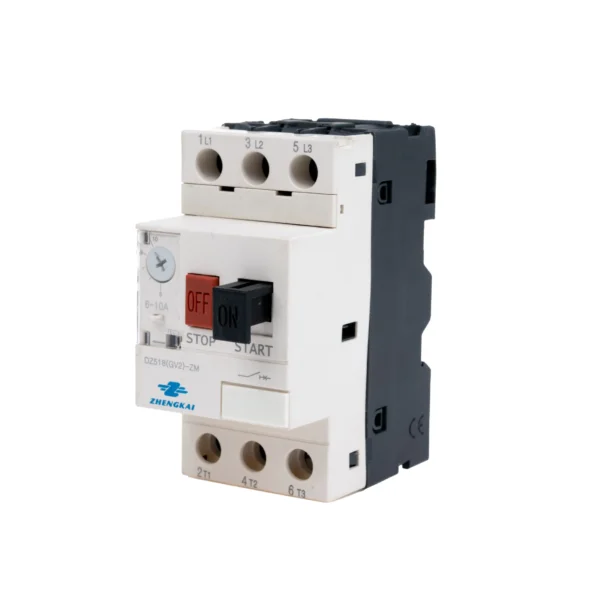

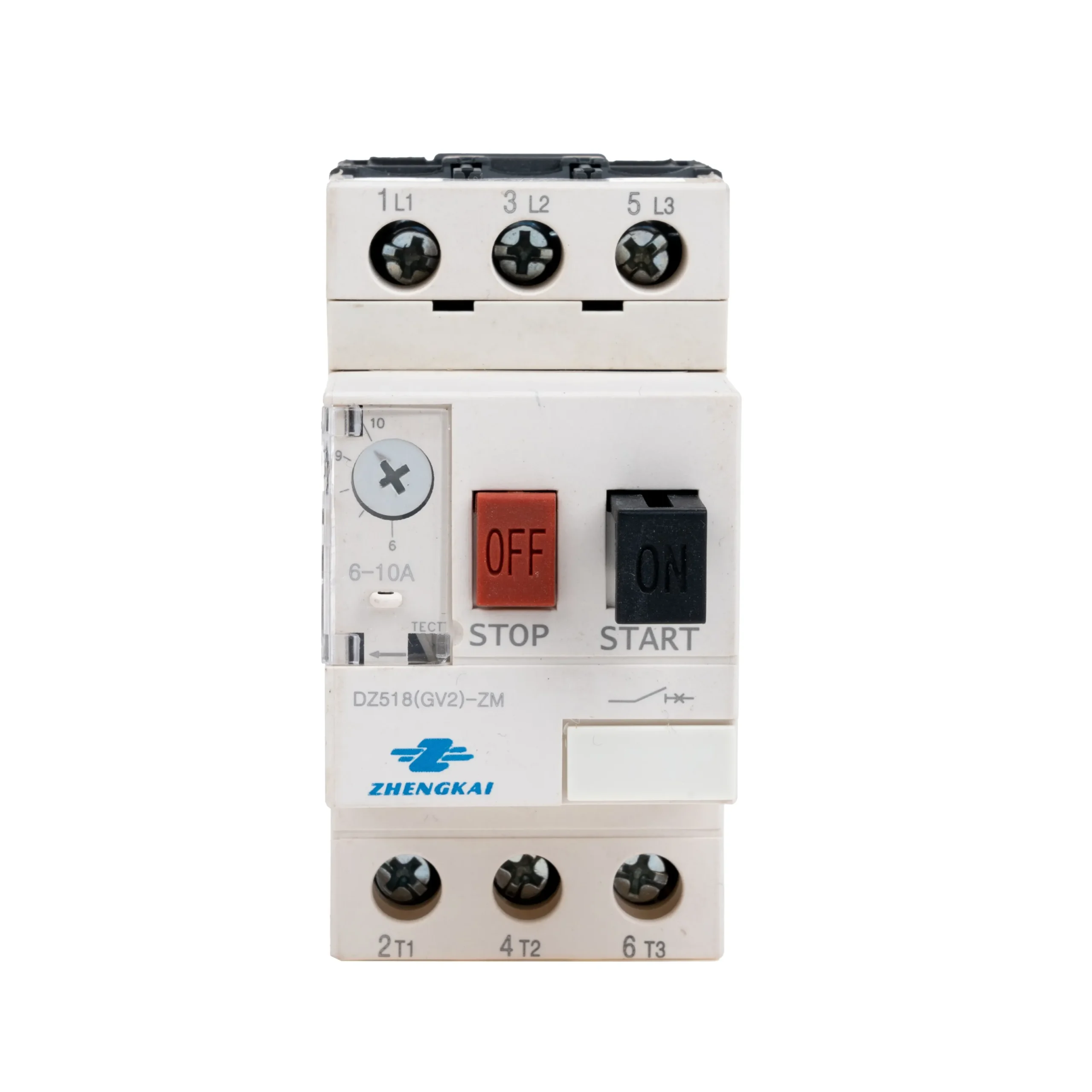

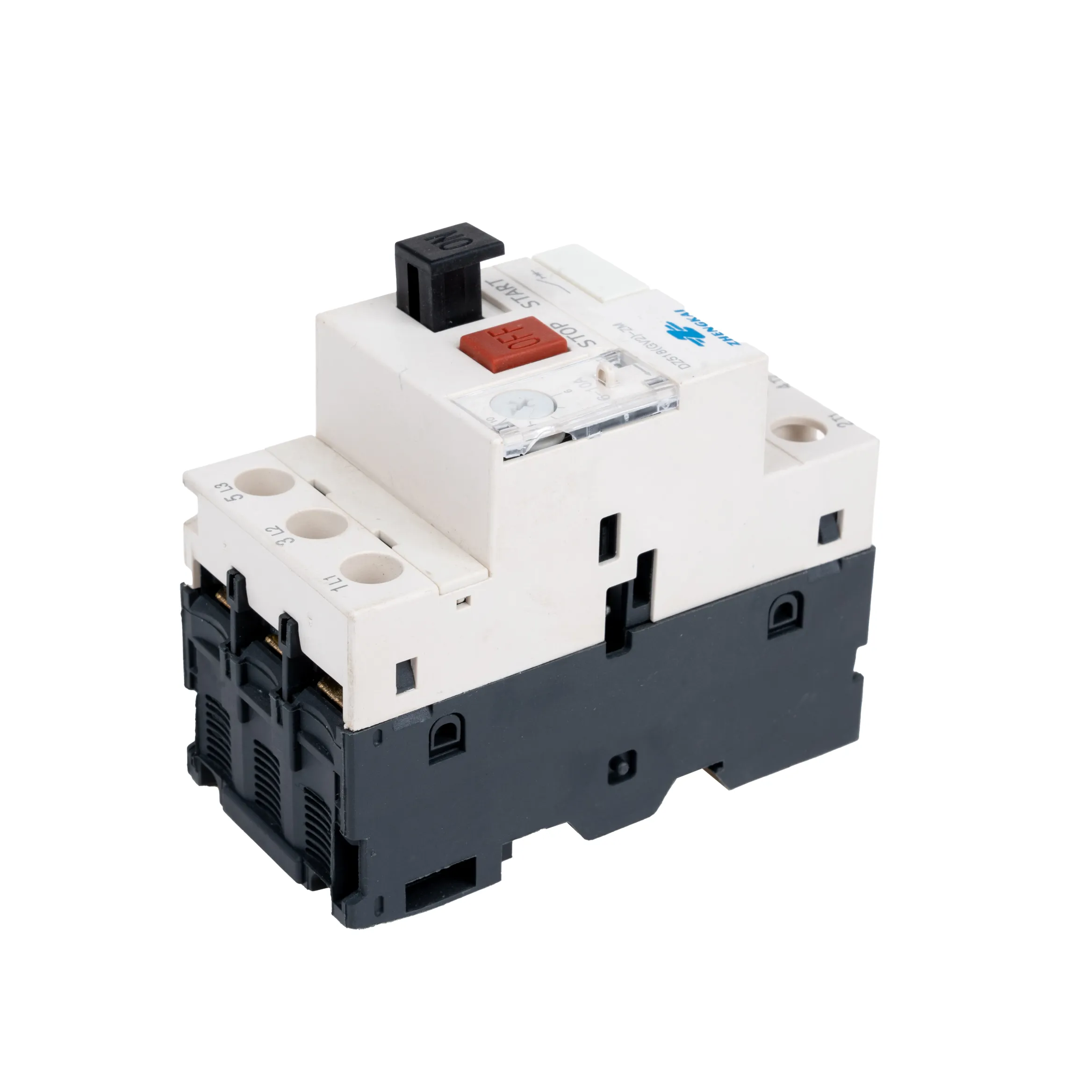

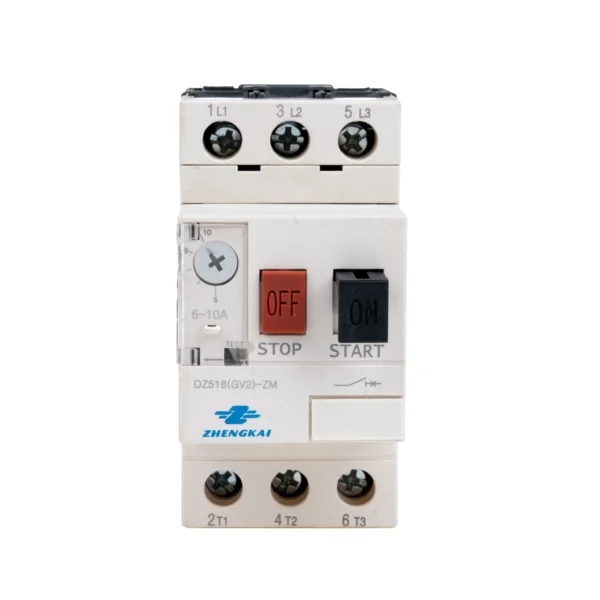

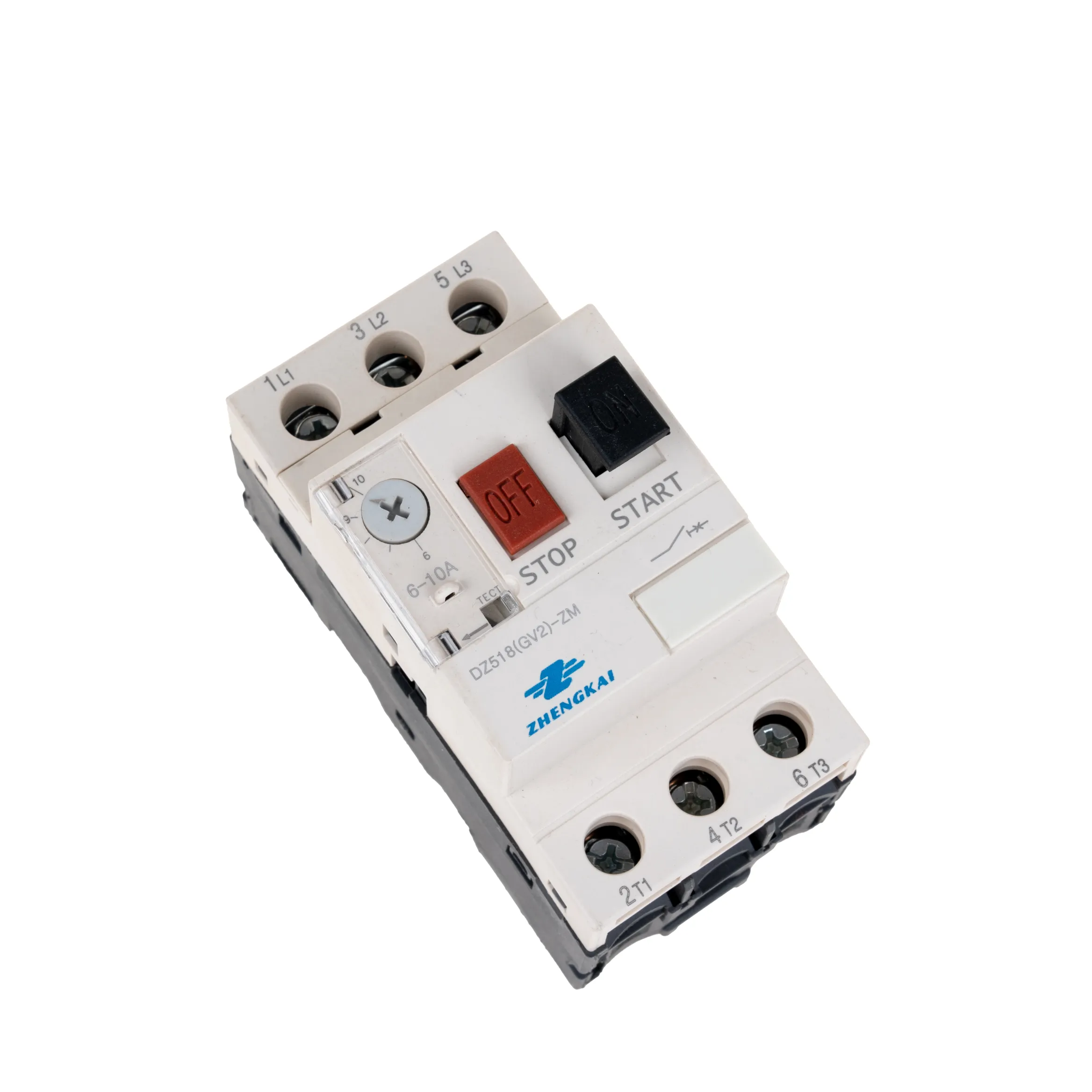

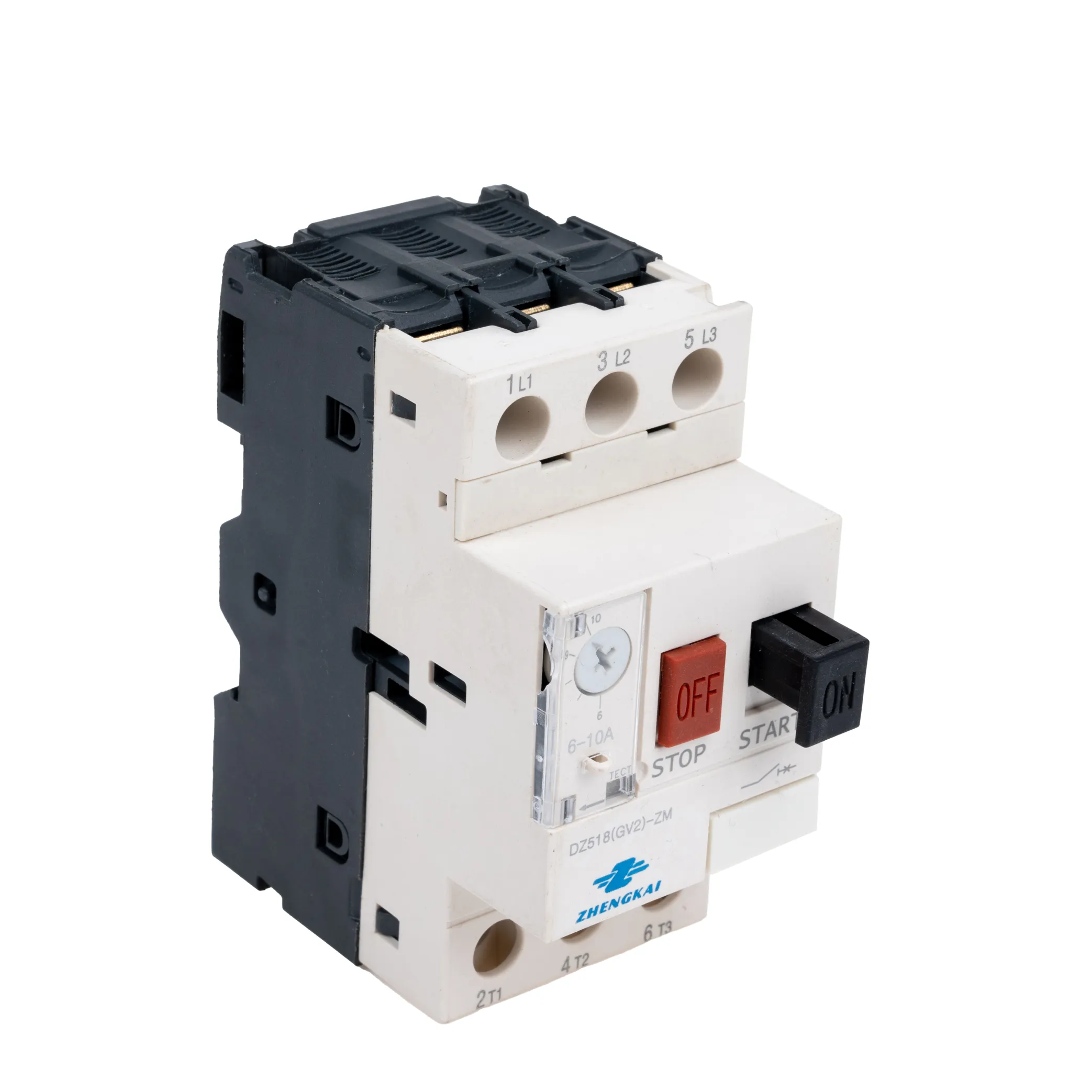

GV2-ZM04 0.40-0.63A Motor Protection Circuit Breaker (MPCB)

Get reliable motor protection with the GV2-ZM04 0.40-0.63A MPCB. Ensure safety and performance for your motors with this high-quality circuit breaker.

Protection Type

Magnetic protection: prevent short circuit function
thermal magnetic protection: prevent short circuit, overload, phase absence and phase imbalance function
Advanced protection: motor blocking, long starting time, grounding fault protection

single magnetic circuit breaker is often used with thermal relay to obtain short circuit protection and overload protection.

Share products to

Product Details

Specification	Rated current In(A)	The adjusting rage of commuting current	The cutting capacity for rated limit short circuit lcu,the cutting capacity for rated work short circuit lcs										The distance of arcs(mm)
			230/240V		400/415V		440V		500V		690V
			Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)
GV2ME01C	0.16	0.10-0.16	100	100	100	100	100	100	100	100	100	100	40
GV2ME02C	0.25	0.16-0.25	100	100	100	100	100	100	100	100	100	100	40
GV2ME03C	0.4	0.25-0.40	100	100	100	100	100	100	100	100	100	100	40
GV2ME04C	0.63	0.40-0.63	100	100	100	100	100	100	100	100	100	100	40
GV2ME05C	1	0.63-1.00	100	100	100	100	100	100	100	100	100	100	40
GV2ME06C	1.6	1.00-1.60	100	100	100	100	100	100	100	100	100	100	40
GV2ME07C	2.5	1.60-2.50	100	100	100	100	100	100	100	100	3	2.25	40
GV2ME08C	4	2.50-4.00	100	100	100	100	100	100	100	100	3	2.25	40
GV2ME10C	6.3	4.00-6.30	100	100	100	100	50	50	50	50	3	2.25	40
GV2ME14C	10	6.00-10.00	100	100	100	100	15	15	10	10	3	2.25	40
GV2ME18C	14	9.00-14.00	100	100	15	7.5	8	4	6	4.5	3	2.25	40
GV2ME20C	18	13.00-18.00	100	100	15	7.5	8	4	6	4.5	3	2.25	40
GV2ME21C	23	17.00-23.00	50	50	15	6	6	3	4	3	3	2.25	40
GV2ME22C	25	20.00-25.00	50	50	15	6	6	3	4	3	3	2.25	40
GV2ME32C	32	24.00-32.00	50	50	10	5	6	3	4	3	3	2.25	40

The action characteristic of breaker(GV2 Motor circuit breaker) when every phase load is in balance
The multiple of rated current	Starting state	Stipulated time	Due result	The temperature of ambient air
1.05	Cold state	t≤2h	No disjounting	+40℃±2℃
1.2	Hot state (rises up to the stipulated currentafter following the test of No 1)	t< 2h	Disjounting
1.5	One-time commuting curren Starts after the bot balance	t< 2min	Disjounting
7.2	Cold state	2<t≤10s	Disjounting

The action characteristic of breaker(GV2 Motor circuit breaker) when every phase load is in balance
The multiple of rated current		Starting state	Stipulated time	Due result	The temperature ofambient air
Any two phases	The third phases
1	0.9	Cold state	t≤2h	No disjounting	+40℃±2℃
1.15	0	Hot state (rises up to the stipulatedcurrent after following the test of No 1)	t< 2h	Disjounting

Other parameters
Ratedinsulation voltage Ui(V):690;
Rated work voltage Ue(V):230/240、400/415、440、550、690;
Rated frequency Hz:50/60;
The grade rated current ofshell Inm(A):32;
The bearable voltage forrated shock Uimp(V):8000。

Here is a revised version of the product details for the GV2-ZM04 0.40-0.63A Motor Protection Circuit Breaker (MPCB), ensuring that relevant keywords are used at least five times and pronouns are replaced with specific terms: The GV2-ZM04 0.40-0.63A Motor Protection Circuit Breaker (MPCB) is designed to provide precise protection for small motors in industrial and commercial applications. The GV2-ZM04 Motor Protection Circuit Breaker ensures that motors operating within the 0.40-0.63A range are safeguarded from overloads and short circuits. By using the GV2-ZM04 MPCB, users can maintain reliable motor performance while minimizing downtime due to electrical faults.

The GV2-ZM04 0.40-0.63A Motor Protection Circuit Breaker features both thermal and magnetic protection, making it ideal for motors that require sensitive and accurate protection. The GV2-ZM04 Motor Protection Circuit Breaker is designed to automatically disconnect the motor in case of overload or short circuit, preventing damage and extending the motor’s lifespan. This makes the GV2-ZM04 MPCB an essential component in any motor control system requiring high reliability.

Installation of the GV2-ZM04 0.40-0.63A Motor Protection Circuit Breaker is straightforward, thanks to its compact design, which allows it to fit easily into existing motor control panels. The GV2-ZM04 Motor Protection Circuit Breaker is compatible with both single-phase and three-phase systems, providing flexibility for various motor configurations. This versatility makes the GV2-ZM04 MPCB suitable for a wide range of applications, including HVAC systems, industrial machinery, and automation equipment.

The adjustable trip settings on the GV2-ZM04 0.40-0.63A Motor Protection Circuit Breaker allow users to fine-tune the protection according to their specific motor requirements. This feature ensures that the GV2-ZM04 MPCB provides optimal protection without unnecessary interruptions in operation. Additionally, the GV2-ZM04 Motor Protection Circuit Breaker is built with durability in mind, ensuring long-lasting performance even in demanding environments.

By choosing the GV2-ZM04 0.40-0.63A Motor Protection Circuit Breaker, users can ensure that their motors are protected from electrical faults while maintaining efficient operation. The GV2-ZM04 MPCB not only enhances safety but also reduces maintenance costs by preventing motor damage due to electrical issues. For any system requiring reliable motor protection within this current range, the GV2-ZM04 Motor Protection Circuit Breaker is an excellent choice.

Questions & Answers

1.What is the current rating range of the GV2-ZM04 Motor Protection Circuit Breaker?

The GV2-ZM04 MPCB is designed for motors with a current rating range of 0.40 to 0.63 amps, making it suitable for small motors requiring precise protection.

2.How does the GV2-ZM04 MPCB protect motors from electrical faults?

The GV2-ZM04 MPCB provides both thermal and magnetic protection, safeguarding motors from overloads and short circuits, ensuring reliable operation in various applications.

3.Can the GV2-ZM04 Motor Protection Circuit Breaker be used in three-phase systems?

Yes, the GV2-ZM04 MPCB is compatible with three-phase systems, offering flexible protection for different motor configurations.

4.What types of applications are ideal for the GV2-ZM04 MPCB?

The GV2-ZM04 MPCB is ideal for protecting small motors in industrial machinery, HVAC systems, and other equipment where precise motor protection is required.

5.Is the GV2-ZM04 MPCB easy to install in existing motor control panels?

Yes, the compact design of the GV2-ZM04 MPCB allows for easy installation in existing motor control panels without requiring additional components or complex modifications.
