GV3-M

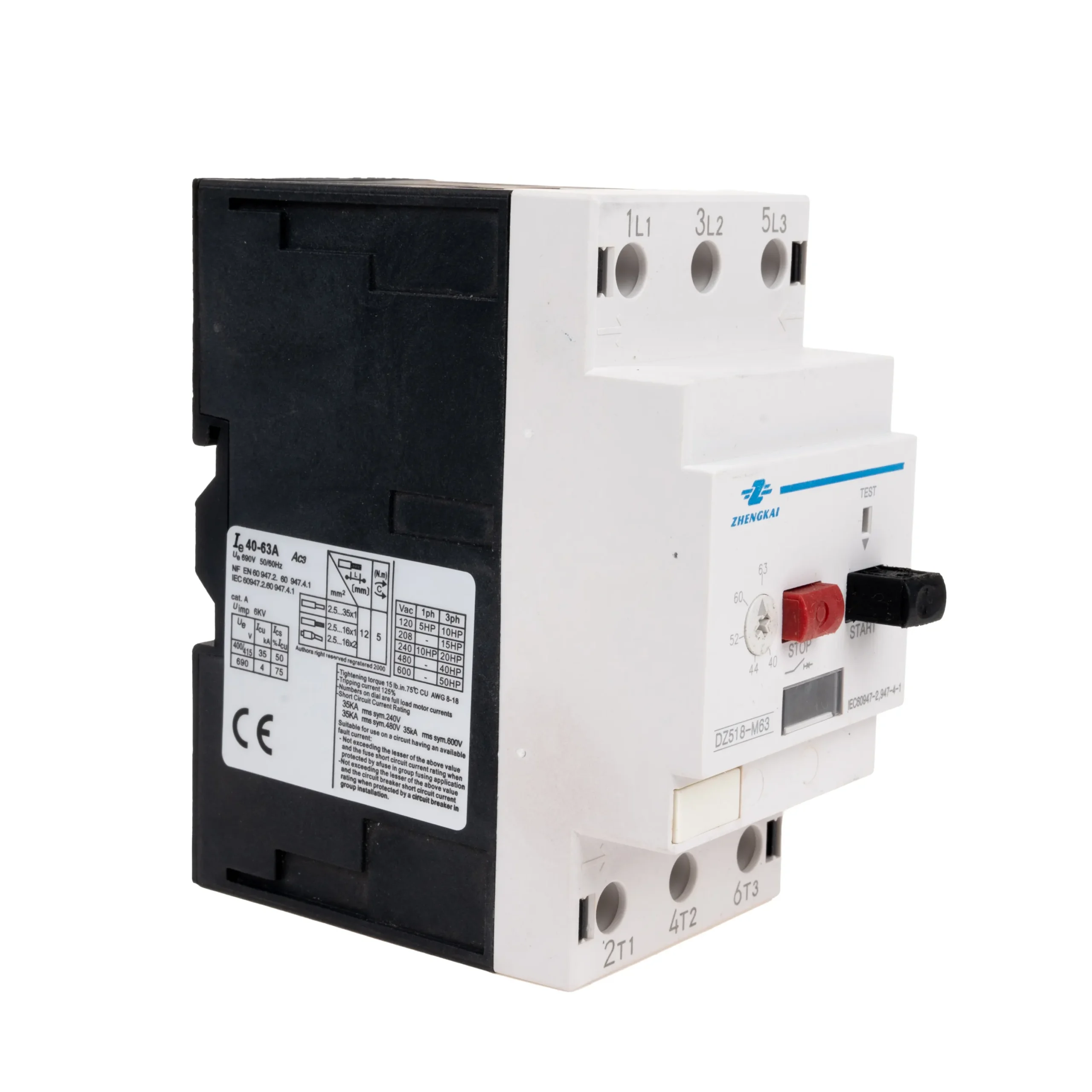

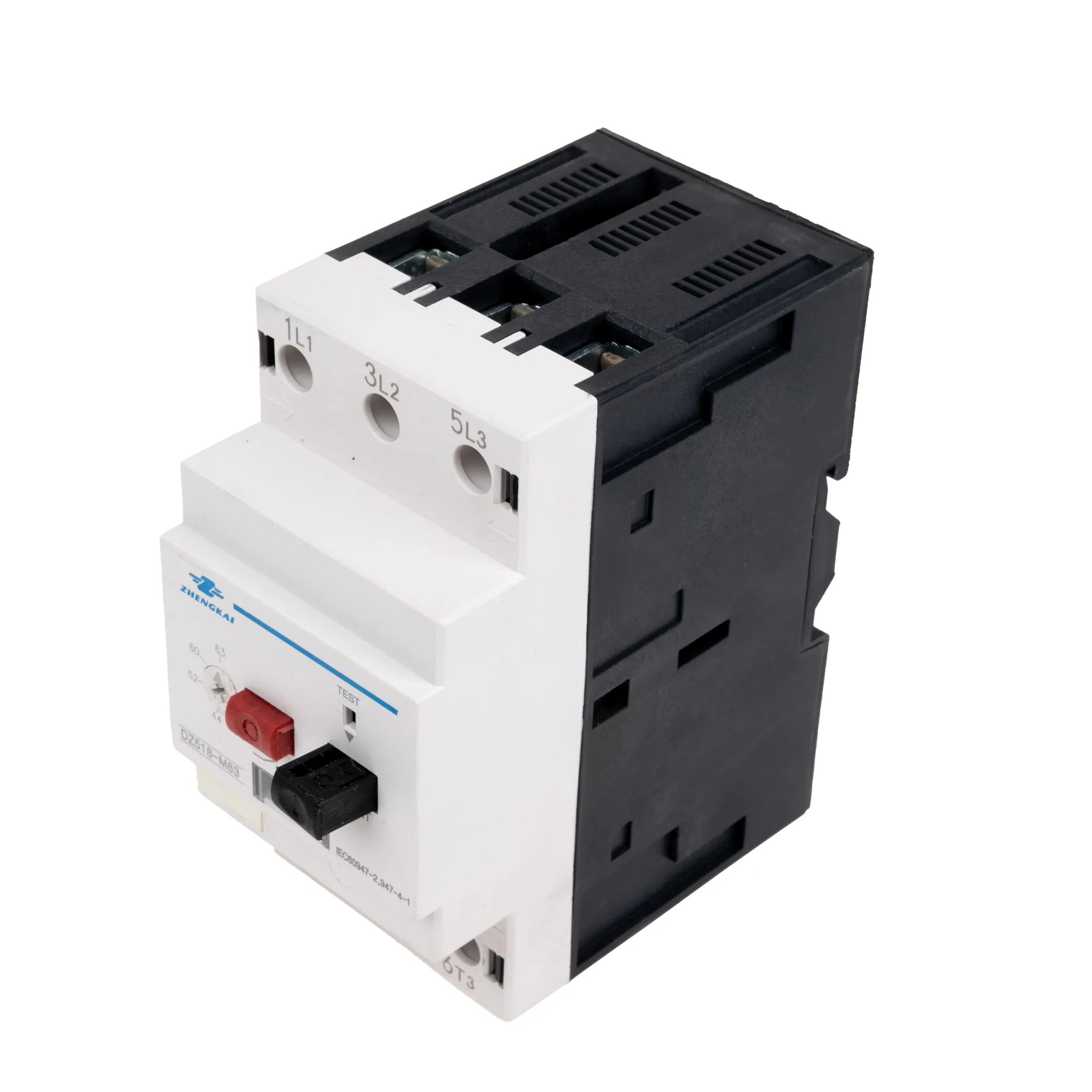

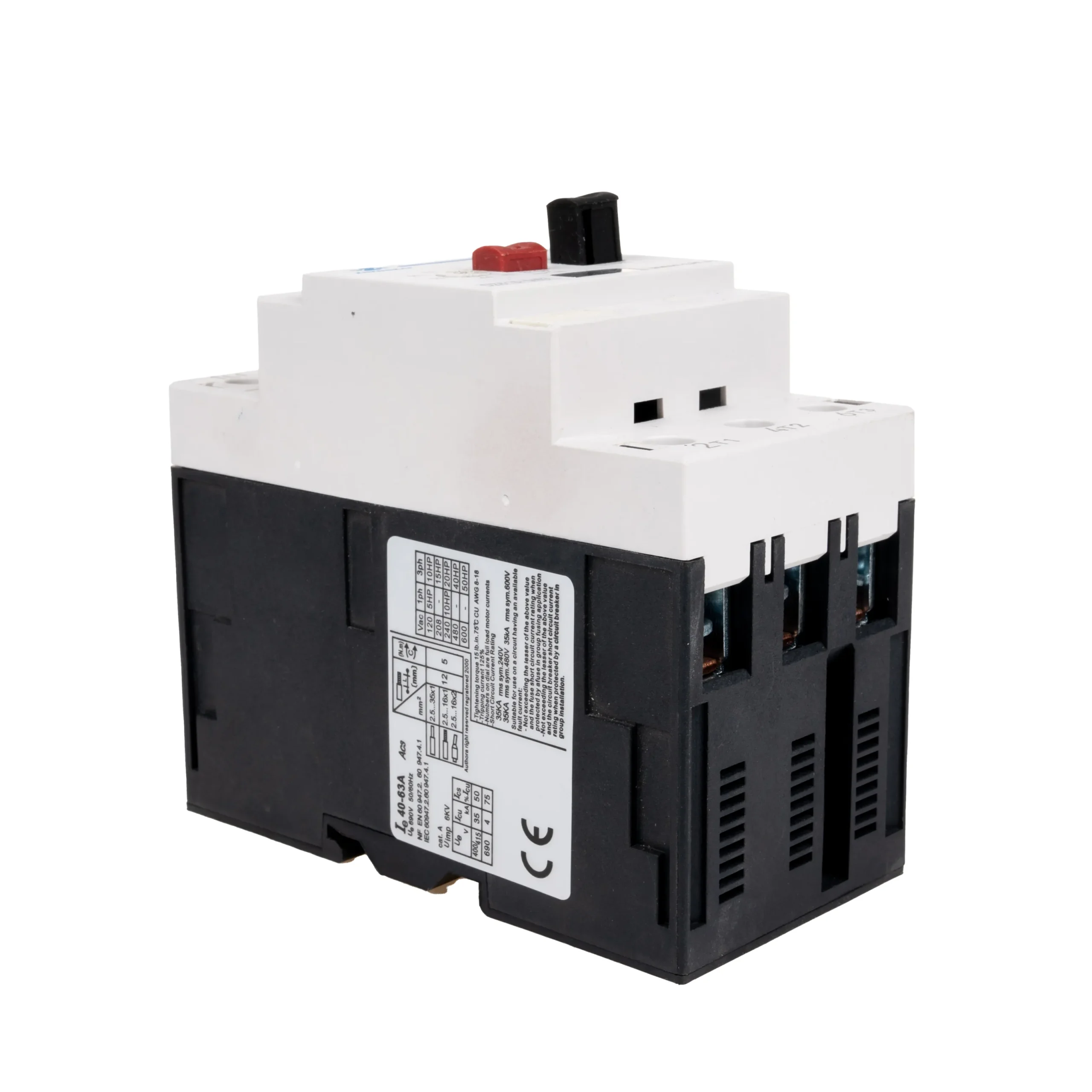

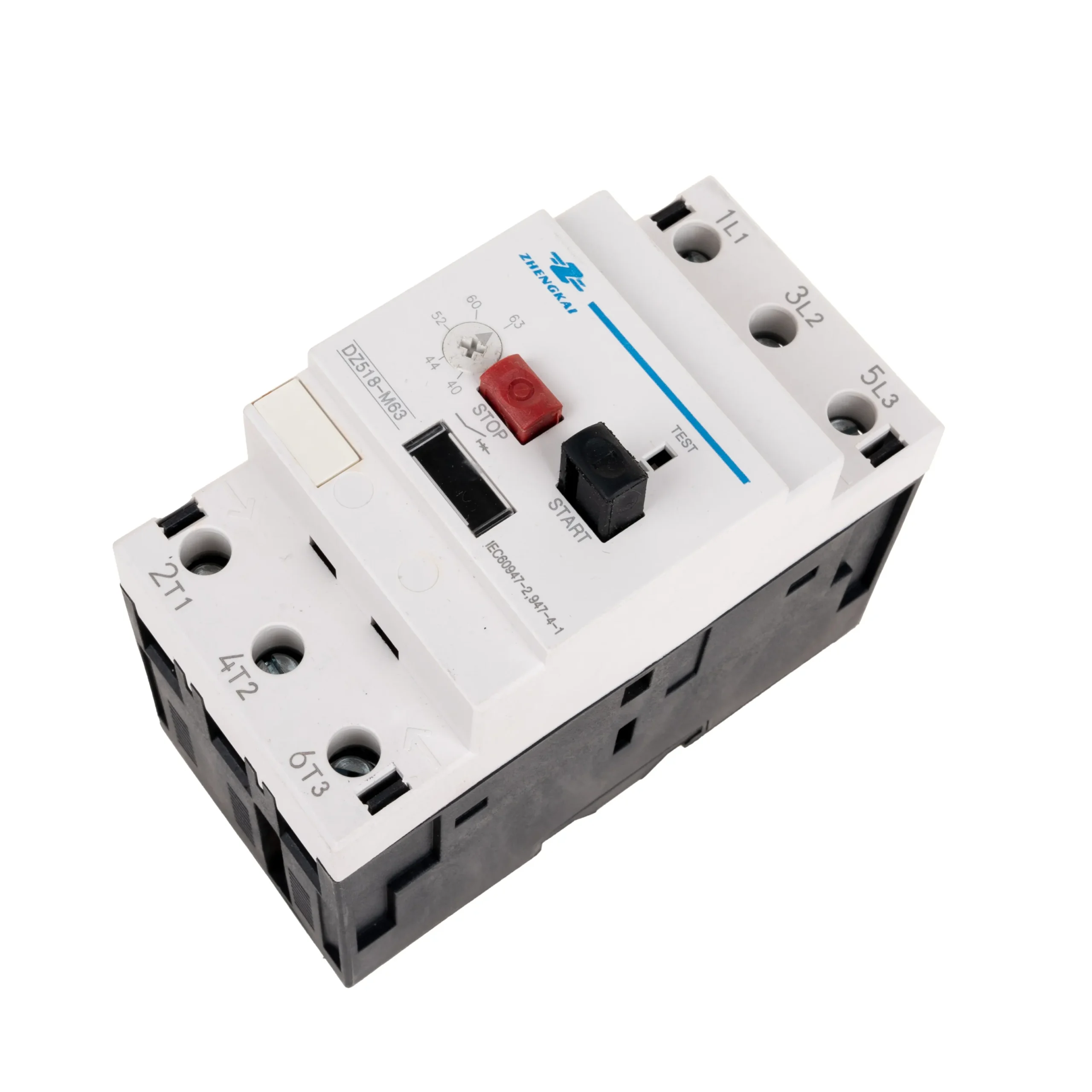

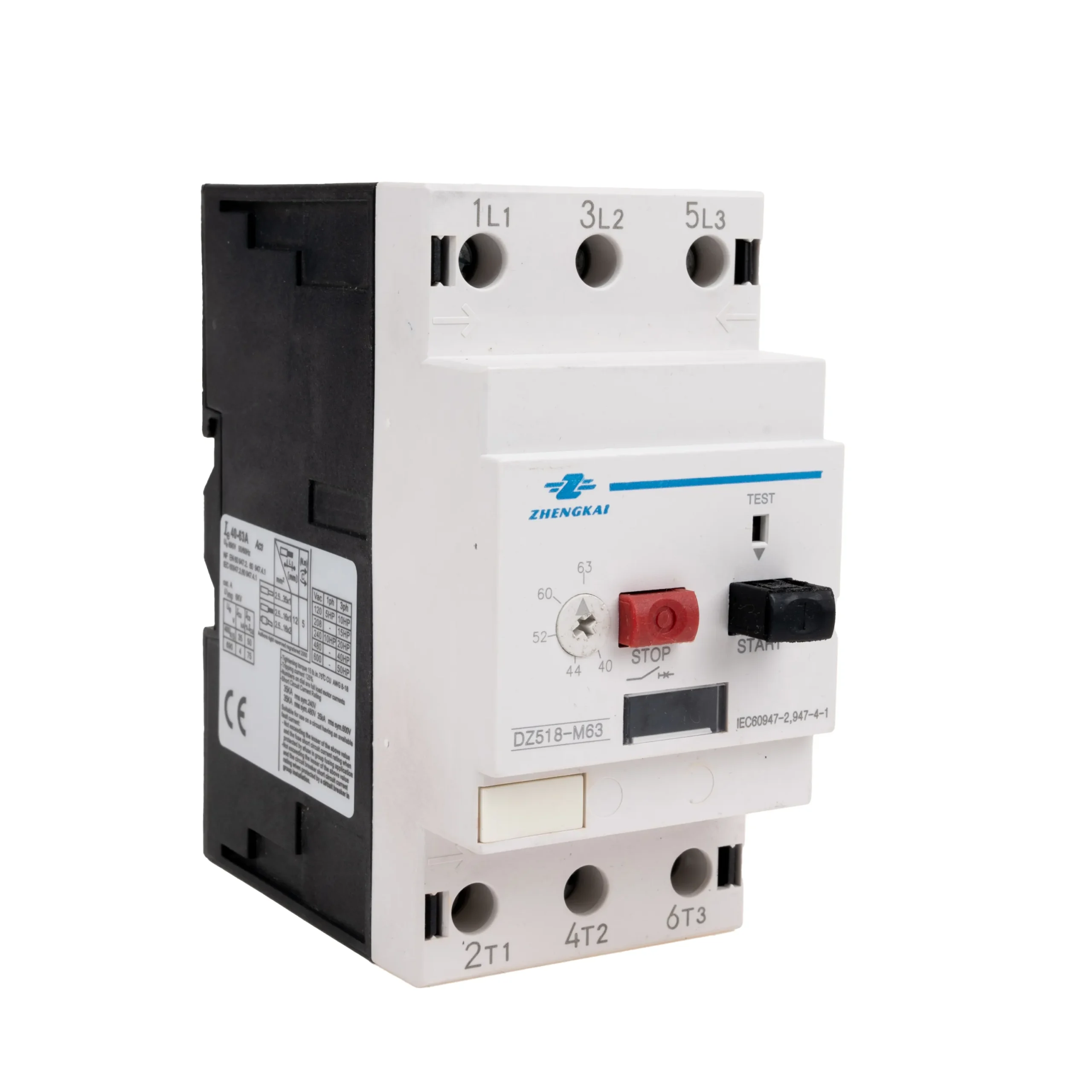

GV3-M10 6-10A Motor Protection Circuit Breaker (MPCB)

GV 3 motor circuit breaker is suitable for the circuit with AC voltage to 690V and current to 80A to realize short circuit and hot overload protection of the motor, and can also be used for infrequent line conversion or direct start of the motor. Widely used in machine tool equipment, grain machinery, textile machinery, generator set, large automatic control equipment, etc.

Share products to

Product Details

Specification	In(A) Rated current In(A)	The adjusting rage of commuting current	The cutting capacity for rated limit short circuit lcu,the cutting capacity for rated work short circuit lcs						The distance of arcs(mm)
			230/240V		400/415V		690V
			Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)	Icu(KA)	Ics(KA)
GV3M10	10A	6-10A	/	/	15	7.5	4	2	50
GV3M16	16A	10-16A			15	7.5	4	2	50
GV3M20	20A	14-20A			15	7.5	4	2	50
GV3M25	25A	16-25A			15	7.5	4	2	50
GV3M40	40A	25-40A			15	7.5	4	2	50
GV3M63	63A	40-63A			15	7.5	4	2	50
GV3M80	80A	56-80A			15	7.5	4	2	50

The action characteristic of breaker(GV2 Motor circuit breaker) when every phase load is in balance
The multiple of rated current	Starting state	Stipulated time	Due result	The temperature of ambient air
1.05	Cold state	t≥2h	No disjounting	+20℃±2℃
1.3	Hot state (rises up to the stipulated currentafter following the test of No 1)	t< 2h	Disjounting
10	Cold state	t< 2s	Disjounting

The action characteristic of breaker(GV2 Motor circuit breaker) when every phase load is in balance
The multiple of rated current		Starting state	Stipulated time	Due result	The temperature ofambient air
Any two phases	The third phases
1	0.9	Cold state	t≤2h	No disjounting	+40℃±2℃
1.15	0	Hot state (rises up to the stipulatedcurrent after following the test of No 1)	t< 2h	Disjounting

Here is a revised version of the product details for the GV3-M10 6-10A Motor Protection Circuit Breaker (MPCB), ensuring that relevant keywords are used at least five times and pronouns are replaced with specific terms: The GV3-M10 6-10A Motor Protection Circuit Breaker (MPCB) is designed to provide reliable protection for motors operating within the 6 to 10 amp range. The GV3-M10 Motor Protection Circuit Breaker offers both thermal and magnetic protection, ensuring that motors are safeguarded from overloads and short circuits. By using the GV3-M10 MPCB, users can enhance motor performance and extend the lifespan of their equipment.

One of the key features of the GV3-M10 6-10A Motor Protection Circuit Breaker is its adjustable trip settings, which allow for precise customization based on motor requirements. This makes the GV3-M10 Motor Protection Circuit Breaker suitable for a wide range of applications, including industrial machinery, pumps, compressors, and other equipment operating within this current range. The GV3-M10 MPCB ensures that motors are protected without unnecessary interruptions in operation.

The compact design of the GV3-M10 6-10A Motor Protection Circuit Breaker allows for easy installation in existing motor control panels. The GV3-M10 Motor Protection Circuit Breaker is compatible with both single-phase and three-phase systems, providing flexibility for various motor configurations. Whether used in industrial or commercial settings, the GV3-M10 MPCB delivers reliable protection for medium-sized motors.

In addition to protecting motors from overloads and short circuits, the GV3-M10 6-10A Motor Protection Circuit Breaker also helps reduce maintenance costs by preventing motor damage due to electrical faults. The durable construction of the GV3-M10 Motor Protection Circuit Breaker ensures long-term performance even in demanding environments. This makes the GV3-M10 MPCB an essential component in any motor control system requiring dependable protection.

By choosing the GV3-M10 6-10A Motor Protection Circuit Breaker, users can ensure that their motors are protected from electrical faults while maintaining efficient operation. The GV3-M10 MPCB not only enhances safety but also improves overall system reliability by minimizing downtime caused by electrical issues. For any application requiring motor protection within this current range, the GV3-M10 Motor Protection Circuit Breaker is a highly effective solution.

Questions & Answers

1.What is the current rating range of the GV3-M10 Motor Protection Circuit Breaker?

The GV3-M10 MPCB is designed for motors with a current rating range of 6 to 10 amps, providing reliable protection for medium-sized motors in various applications.

2.How does the GV3-M10 MPCB protect motors from electrical faults?

The GV3-M10 MPCB offers both thermal and magnetic protection, safeguarding motors from overloads and short circuits, ensuring long-term motor reliability.

3.Can the GV3-M10 Motor Protection Circuit Breaker be used in three-phase systems?

Yes, the GV3-M10 MPCB is compatible with three-phase systems, making it suitable for industrial and commercial motor protection applications.

4.What types of applications are ideal for the GV3-M10 Motor Protection Circuit Breaker?

The GV3-M10 MPCB is ideal for protecting motors in industrial machinery, pumps, compressors, and other equipment that operates within the 6-10A current range.

5.Is the GV3-M10 MPCB easy to install in existing motor control panels?

Yes, the compact design of the GV3-M10 MPCB allows for easy installation in existing motor control panels, providing quick and efficient motor protection without requiring additional components.
