Product Overview
The TA-63X 63A Adjustable Over and Under Voltage Protector provides advanced protection for electrical circuits, with automatic detection and cut-off features for overvoltage, undervoltage, and overcurrent situations. Its digital dual display offers real-time monitoring of voltage and current, ensuring precise protection for both household and industrial applications.
Key Features
Rated Current: 63A
Voltage Range: Overvoltage 130~300V, Undervoltage 80~210V
Digital dual display for voltage & current
Adjustable voltage, current tripping, and recovery parameters
Automatic reclosing function
Manual/automatic recovery modes
Multi-mode display: voltage, current, frequency, visual power
Knife switch function for safety operation
Set lock to prevent accidental parameter changes
DC mode available, energy-saving brightness control
Wide compatibility for DIN rail mounting
Protection Functions
Overvoltage and undervoltage protection (switchable)
Overcurrent protection (switchable)
Quick power failure response
Continuous overcurrent count function
Embedded RTOS for improved stability and high maintainability
Technical Parameters
| Parameter | Value |
|---|---|
| Rated Current | 63A |
| Overvoltage Range | 130-300V (adjustable) |
| Undervoltage Range | 80-210V (adjustable) |
| Display Mode | Voltage/Current |
| Power Failure Response | Fast |
| Mounting Type | DIN Rail |
| Dimensions | 85mm x 37mm x 67mm |

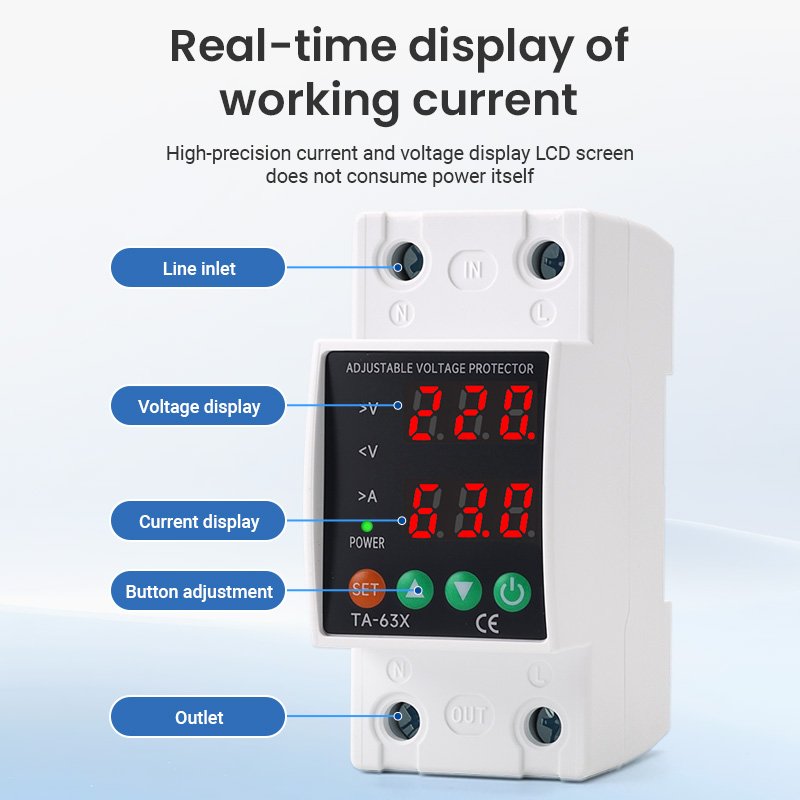

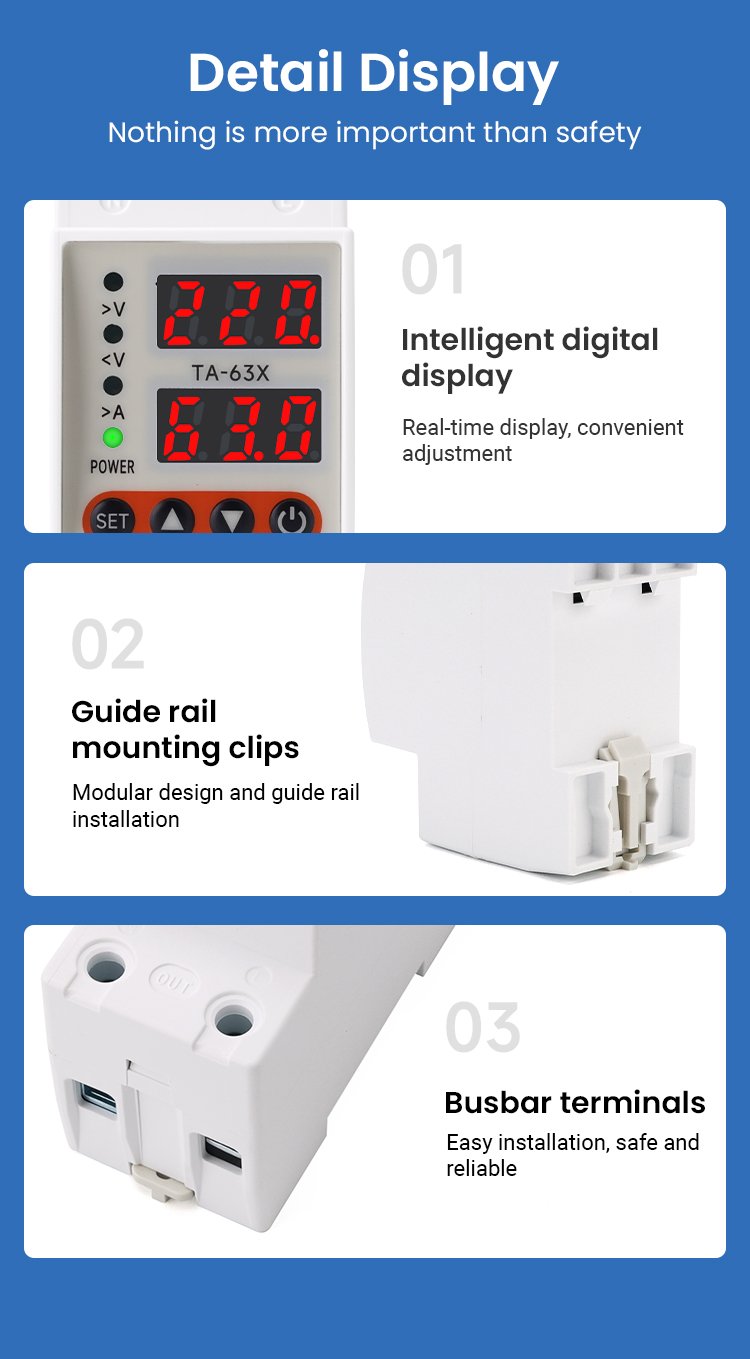

Real-Time Voltage and Current Display
The TA-63X Adjustable Voltage Protector features a high-precision LCD screen that provides real-time display of both voltage and current without consuming power itself. Key functional ports are clearly labeled for user convenience, including line inlet (N, L), outlet, and control buttons for easy parameter adjustment.
The LED display ensures accurate monitoring of electrical parameters, enhancing operational safety by enabling instant awareness of voltage and current statuses. The user-friendly button interface allows seamless setting modifications to adapt to different protection requirements.
This design supports precise control and protection in electrical circuits, making the device ideal for both residential and industrial applications requiring voltage stability and current safety.
Product Parameters

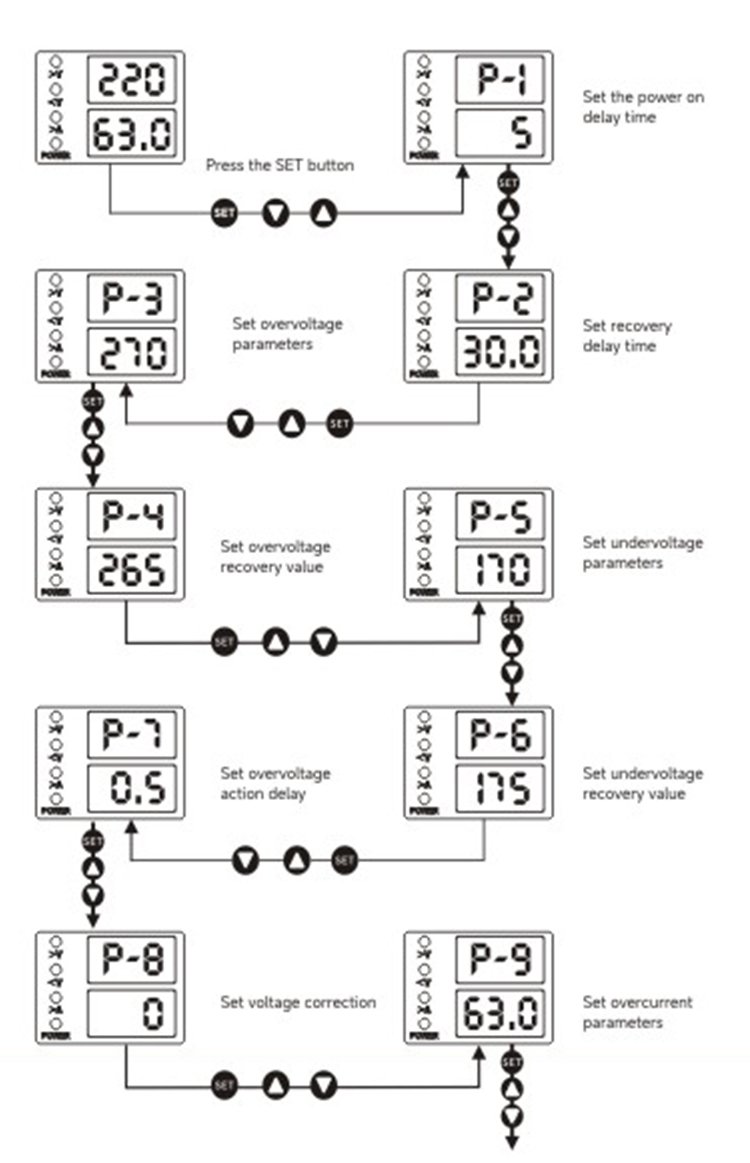

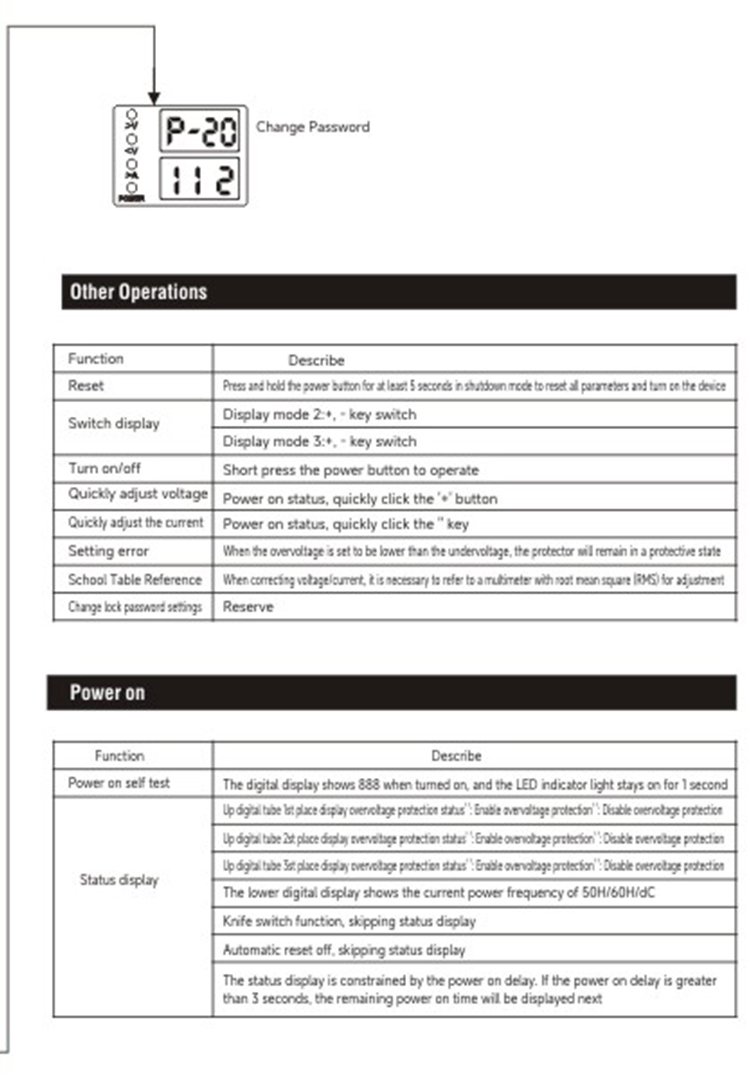

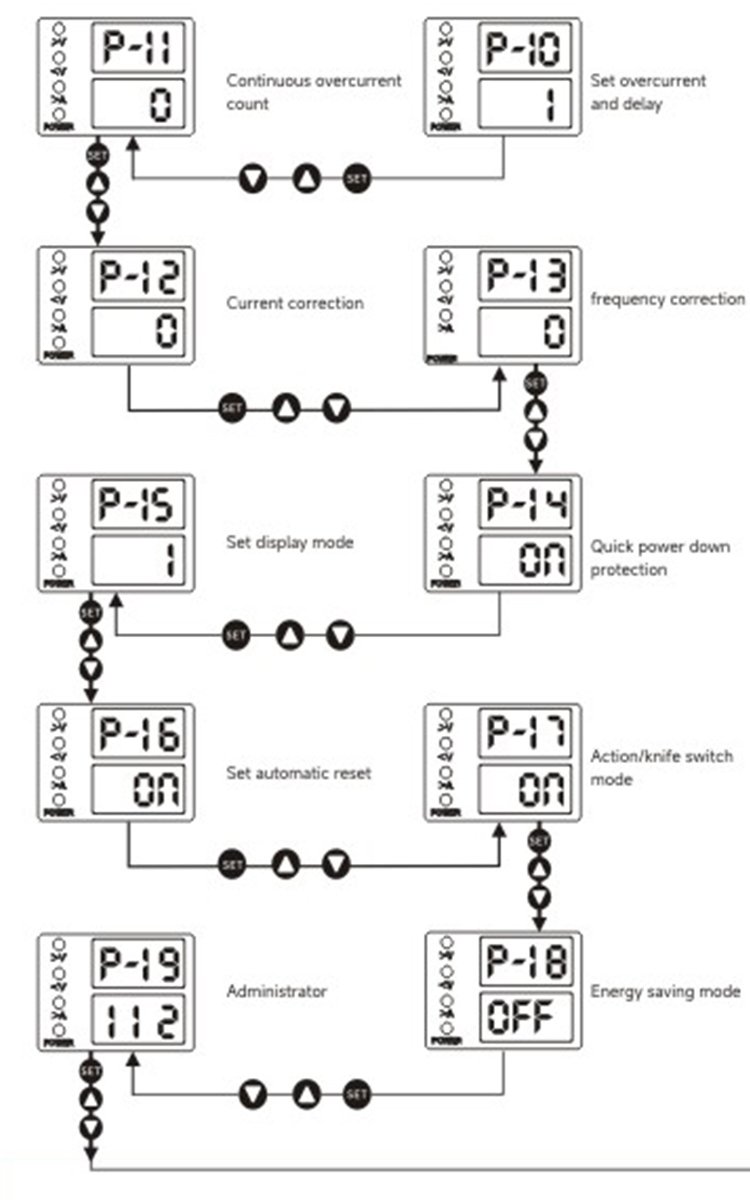

Operation and Parameter Setting Guide
Key Features and Advanced Protection Technology
FAQ
What is an over and under voltage protector?
It is a device that automatically protects circuits from high or low voltage problems.
